Heavy-Duty Gantry Cutting Machine
August 1, 2013

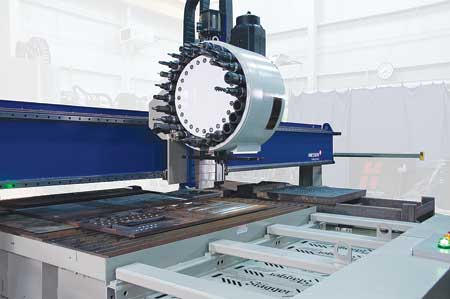

CAT 50 Spindle. Maximum drill diameter is 4". Maximum tapping to 1-1/2" diameter; tool changer holds 24 tools. This is an optional feature on the TMC4500 DB.

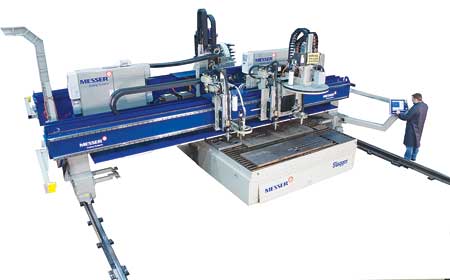

TMC4500 DB: The TMC4500 DB is heavy-duty box-beam constructed gantry cutting machine designed for rigorous production environments. The TMC4500 DB can utilize precision plasma, oxyfuel and drilling capabilities up to 4" diameter holes plus a variety of marking techniques.
Messer Cutting Systems has introduced the largest machine in Messer's line, the TMC4500 DB. The TMC is heavy-duty dual box-beam constructed gantry cutting machine. The dual beam design is supported by 10' endtrucks for greater stability.
The dual beam design allows for the placement of process tools on both beams. In applications requiring a large variety of tools, the cross axis beams grow in width to accommodate the coverage of each process. The dual beam design allows for a narrower footprint by utilizing both front and rear beams necessary to fit within limited workspaces.
Additionally, Messer reported that the dual beam design is a strong enough to support Messer's 65 HP drill with a 24 tool changer, capable of drilling 4" diameter holes. The TMC4500 DB can support all of Messer's process tools including precision bevel and straight plasma, laser, oxyfuel cutting, marking, grinding and drilling.
For more information contact:
Messer Cutting Systems, Inc.
W141 N9427 Fountain Blvd.
Menomonee Falls, WI 53051
262-255-5520
sales@messercutting.com
www.messer-cs.com
