3-D Print Metal Parts Quickly and Flexibly



TRUMPF has expanded its technology and product range in additive manufacturing (AM) and will feature these new options at FABTECH. With the new TruPrint 1000, its latest solution in laser metal fusion (LMF), and developments in laser metal deposition (LMD), TRUMPF offers all the pertinent laser technologies for industrial 3-D printing. "TRUMPF offers customers the complete package - the laser beam source, machine, powder, services and application consulting - from a single source," said a company spokesperson.

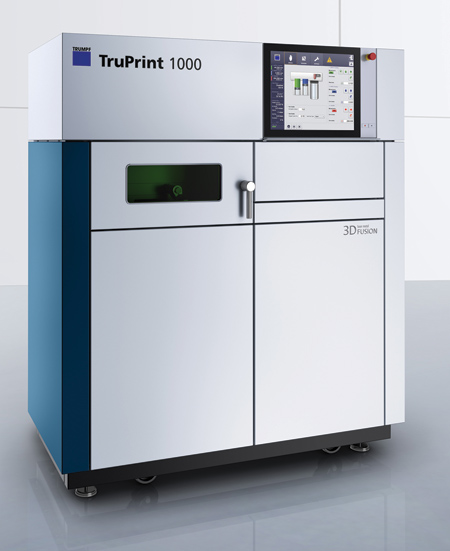

TruPrint 1000

The new TruPrint 1000 uses a laser and metallic powder to build any desired component based on data supplied directly by a CAD program. LMF systems create the component, layer by layer, from metal powders with grain sizes as small as 20 micron. This technology is designed for parts that are complex in their geometry, such as those with internal channels and hollow spaces, and for manufacturing individual parts or short production runs economically. The compact model can be used both by novices and those experienced in AM technology, making it a fit for job shops, medical or dental customers or for R&D environments. It can generate parts that are a maximum of 100 mm in diameter and 100 mm in height. The user interface with touchscreen control steps the operator intuitively through the individual phases of the process. All of the components, including the laser, optics, process enclosure, filter unit and control cabinet, are integrated into the compact housing of the TruPrint 1000.

The supply cylinder, construction chamber and overflow receiver are all aligned inside the enclosure. The supply cylinder contains the stainless steel, aluminum or any weldable material in powdered form. During the build, a layer of metal powder is applied to a substrate plate and then a 200 W laser is used to fuse the cross section of the geometry to the plate. After the exposure, the plate is lowered and the next layer of powder is applied. This procedure is repeated until the part is finished. The entire process takes place inside the enclosure, blanketed by protective gas, and at an oxygen content of 0.1% percent for maximum part quality.

New LMD Package

TRUMPF has also continued to optimize its LMD technology. This solution can be used for adding volume and structures/features to existing parts. In LMD systems, the laser forms a melt pool on the surface of a component and fuses the powder - applied simultaneously and coaxially - to create the desired shape. Applying multiple layers enables the user to expand the form in any direction. "With the ability to add material at rates as great as 500 cubic centimeters per hour, this process can be more economical than conventional manufacturing," said the spokesperson. In addition, complex structures can be added to existing parts, allowing for the design of communized base structures that have features and strength added where needed. Based on the specifics of the application, fabricators can choose either the large TruLaser Cell 7040 or the more compact TruLaser Cell 3000 with the new LMD package.

For more information contact:

TRUMPF Inc.

Farmington Industrial Park

111 Hyde Rd.

Farmington, CT 06032

860-255-6000

info@us.trumpf.com

www.us.trumpf.com

FABTECH 2016 Booth C35041
