5-Axis Vertical Machining Center for Versatility and Accuracy

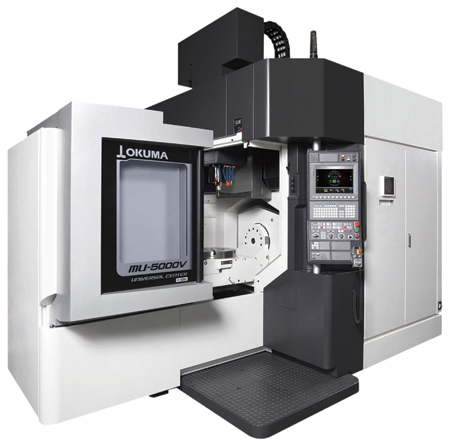

Okuma's MU-5000V vertical machining center (VMC) is designed for 5-axis multi-sided machining. Standard ball-screw cooling and a rigid left-right, mobile trunnion table support high precision and heavy-duty cutting power in a compact footprint. The low center of gravity in workpiece movement gives this machine the ability to machine difficult materials and a range of workpieces.

This VMC is available with a standard No. 40 or 50 spindle, providing a configuration for a variety of 5-axis jobs. An in-machine coil chip conveyor allows for safe, reliable chip discharge. Close proximity of the spindle and control panel, in addition to easy access to the workpiece, give this machine enhanced operator functionality.

Increased productivity is achieved with an array of automation options. The design places the pallet changes at the back of the machine, allowing easy connection to a PALLETACE flexible manufacturing system, pallet pool, large capacity ATC and robots to deliver productivity in addition to accuracy.

The MU-5000V can be equipped with Okuma's exclusive Super-NURBS function, enabling high feedrates and fine finishes. Optional Machining Navi monitors cutting conditions and displays optimal spindle speed to eliminate chatter. Five-Axis Auto Tuning can achieve high accuracies by automatically measuring and correcting machine misalignments in minutes. "Okuma's Thermo-Friendly Concept and Collision Avoidance System are standard intelligent technologies to ensure this 5-axis machining center performs consistently from the first part to the last, regardless of warm up time or ambient temperatures, and the machine is protected from potentially harmful crashes," said a company spokesperson.

Features of Okuma's MU-5000V include:

  • Axis travels XYZ: 800/1050/600 mm (31.5"/41.3"/23.6")
  • C-Axis: 360 infinite degrees
  • Rapid traverse XYZ: 50 m/min (1,969 IPM)
  • Rapid A-C: 18,000 deg/min
  • Maximum load: 500 kg (1,100 lbs.).
