Compact Horizontal Bandsaw

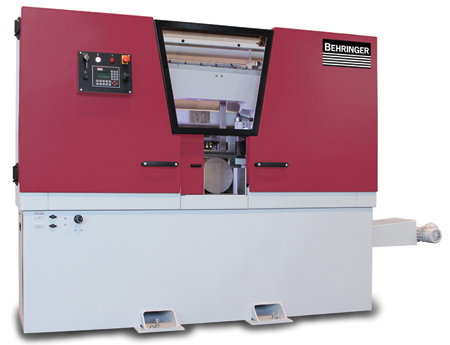

Behringer Saws, Inc. will be exhibiting at FABTECH 2016, highlighting its new HBE Dynamic Series Horizontal Bandsaw among other high quality saw solutions for fabricating applications. A versatile, compact automatic saw, the HBE Dynamic features an array of features designed to improve performance and precision while increasing user convenience and safety. "Ideal for a range of application environments from production cutting steel service centers to metalworking job shops, we have positioned the HBE Dynamic as Behringer's affordable `everyday' bandsaw with a full complement of innovative, performance-enhancing features," said Richard Klipp, President of Behringer Saws, Inc.

Among the range of features on the HBE saw is a servo-driven precision downfeed control that can automatically adjust blade pressure, creating an optimal balance of feedrate and pressure for improved quality and cutting rates, while extending blade life. An electrically powered ball screw driven material feed gripper helps to eliminate backlash and ensure material positioning for improved accuracy.

The HBE Series saws also features an automatic feed control (AFC). The Behringer AFC feature automatically adjusts cutting parameters such as blade speed and downfeed rate to the material grade and shape. This allows operators to create flexible material programs, leveraging cutting data based on specific material grade. Additionally, the operator may view a fault/alert history at any time. "The detailed information displayed in plain text is useful for both planning and analysis of past projects," said a company spokesperson.

The cast iron dual column construction of the HBE saw frame provides rigidity, helping to eliminate stress, reduce vibration and enhance blade tension. Two linear ways and four guides facilitate precise and accurate vertical movement of the blade. Cutting accuracy is further enhanced by the horizontal band arrangement, hydraulically tensioned blade and double roller bearings for the blade guiding.

"HBE saws utilize a high torque, frequency-controlled blade drive which requires low power consumption, yet produces the blade power and speed needed for fast cutting and peak throughput rates," said the spokesperson.

"The enclosed HBE design promotes safe operator use, stays clean and minimizes noise while providing a large observation window. And an intuitive NC control system enables user-friendly operation," continued the spokesperson.

The HBE Dynamic saw is available in four models - 261A, 321A, 411A and 511A. The HBE cutting range is from 10.2" to 20.0" diameter for round stock and from 11.8" x 10.2" up to 20.0" x 20.0" for flat stock. Stroke length is 25.6" and blade speed ranges from 50-350 ft/min.

For more information contact:

Behringer Saws Inc.

721 Hemlock Road

Morgantown, PA 19543

610-286-9777

sawing@behringersaws.com

www.behringersaws.com

FABTECH 2016 Booth C44047
