Updated Horizontal Machining Centers

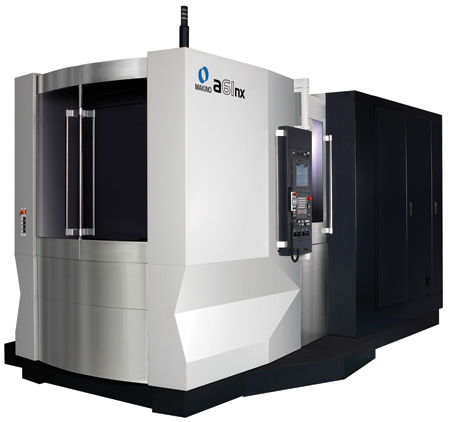

Makino has introduced the updated a51nx and a61nx horizontal machining centers (HMCs). With the same rigid casting and axis designs of the original platforms, the updated a51nx and a61nx feature an expanded list of technology advancements, including increased spindle torque, innovative tool monitoring, advanced motion controls and the Professional 6 control.

David Ward, Horizontal Product Line Manager at Makino, said, "The updated set of features on these machines unleashes a new level of productive capability that will reduce cycle times and improve overall throughput, enabling companies to gain a competitive edge with the lowest possible cost per part."

The a51nx and a61nx models feature expansive axis travels to accommodate a range of parts and more parts per fixture. The a51nx has a 560 mm (22") X-axis and extended Y and Z axes of 640 mm (25.2") for a total axis volume of 8.1 cubic feet.

The standard a61nx has a 730 mm (28.7") X-axis, 650 mm (25.6") Y-axis and extended Z-axis of 800 mm (31.5"). An optional tall column on the a61nx expands the Y-axis to 730 mm (28.7"), allowing customers to process larger parts that may have previously required 50 taper machines. Due to the expanded Z-axis stroke, maximum tool length on the a51nx and a61nx models is increased to 430 mm (16.9") and 510 mm (20.1"), respectively.

High-Torque, High-Power Spindles

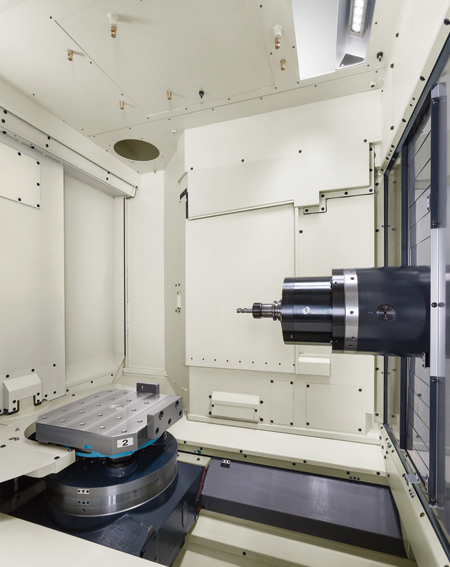

The updated a51nx and a61nx models feature a standard 14,000 RPM (30 kW) spindle that has been upgraded to deliver 303 Nm of torque. This design enables the machines to accelerate and decelerate from full RPM in 17% less time. When compared to previous models, the additional torque reduces rigid tapping time by 20 to 25% per hole. Large-diameter angular contact bearings help to ensure a high level of rigidity for a variety of applications and processes.

An optional 24,000 RPM (80/60 kW) spindle is available on the a61nx model for high metal removal rates in aluminum part applications. A new 20,000 RPM (30/18 kW) spindle with direct-inject air-oil lubrication is also available, delivering improved reliability and power for enhanced productivity.

Reducing Non-Productive Time

Several enhancements have been made to reduce non-cut time on the updated a51nx and a61nx machines. A vision-type broken tool sensor (Vision BTS) comes standard, supporting unattended operation by quickly validating the condition of cutting tools after each tool change. By creating a silhouette of the cutting tools, Vision BTS is also able to detect the length, size and approximate weight of the tool. This information can then be applied to automatically set the tool-change speed to the appropriate setting (fast, medium or slow). The Vision BTS system has fewer moving parts and requires no physical contact with the cutting tool, allowing for enhanced, long-term reliability and less risk of chipping delicate tool materials, such as polycrystalline diamond (PCD).

Inertia active control (IAC) technology has also been expanded for greater efficiency on the updated a51nx and a61nx machines. In addition to optimizing positioning motion of the rotational B-axis, IAC technology is now able to improve acceleration and deceleration rates along the Z-axis. IAC has also been added to the rotation of the ring-type tool magazine. Each time tools are loaded into the magazine, IAC quickly evaluates the total weight held in the ring and adjusts acceleration to match the total load for reducing the time the tool magazine seeks tools.

Professional 6 Control

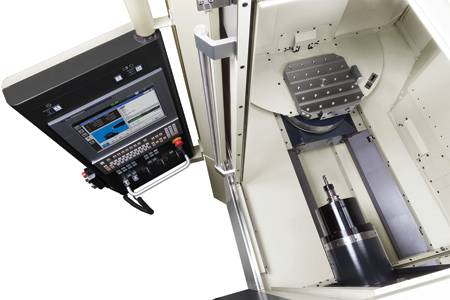

With a blend of FANUC hardware and Microsoft Windows Embedded Standard 7 OS, the Professional 6 (Pro6) control helps move operators through machine set-up, empower them with accessible information and protect them with enhanced safety. Cycle time saving and dynamic control capabilities have been added to the control's GI functions to help lower costs per part.

Two forms of motion control GI are included with the Pro6 control:

  • GI Drilling is a G-code drilling cycle that enables the spindle and tool to arc from hole to hole instead of following a square path. This change can reduce non-cut time by as much as 15% on common hole pattern drilling
  • GI Milling is designed to improve performance in 2-D milling. GI Milling lets the user define a corner-rounding tolerance on each milling path. Even a small tolerance enables the machine to quickly flow through the cut path, completing milling paths in less time.

On complex 2-D paths, testing has reduced cut time up to 35%. "While not every tool can make use of these functions, advanced motion control GI is proven to reduce overall cycle time by 3 to 8% in typical production component," said a company spokesperson. This reduction can save cost in both high-volume and low-volume production environments by reducing the number of spindles required and freeing up machine availability to take on more work.

Operator Enhancements

The exterior of the machines have evolved in an effort to make maintaining the machine easier for the operator. An L-shaped door, when open, allows more light to enter the machine and prevents fluid from dripping onto the operator during inspection and maintenance. The wide opening on the pallet-loading station doors lends access for loading of fixtures and large workpieces. "This type of accessibility is crucial for part loading and unloading in robot-automated environments" said the spokesperson.

Chip and coolant management has been improved with the addition of a standard hydro-cyclonic filtration system. This system cleans coolant down to a 20 µm level, extending the maintenance life of the coolant.
