New Two Speed Magnetic Drill

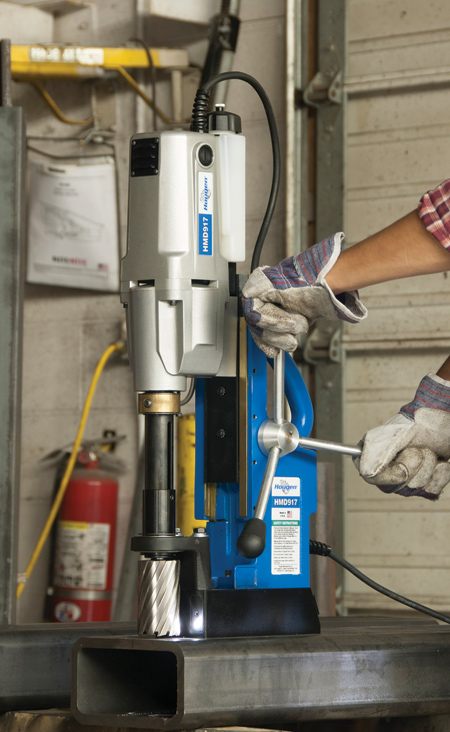

HMD917 Two Speed Magnetic Drill

Hougen Manufacturing, Inc. has released a new model of portable magnetic drill, the HMD917. "This new model offers a major performance and power improvement to the line of Hougen magnetic drills," said a company spokesperson. "The HMD917 has a great power to weight ratio by giving metal fabricators more strength and torque to drill large deep holes in steel."

The drill has a number of new features not seen on previous models of Hougen drills. "The newest innovation is the mag drill pilot light. The LED light is built into the base of the magnet and allows the operator to more efficiently and quickly line up the pilot with the holes center location in low light or no light conditions," said the spokesperson. Powering the drill is a proprietary high torque two speed Hougen motor. "The new motor is the strongest most powerful motor put on any Hougen drill. The two speeds help maximize tool life and increases torque when using larger diameter cutters," said the spokesperson. The addition of a two stage magnet increases magnetic holding power by 30% when the drill motor is turned on, saving energy and increasing magnet life. A new arbor system utilizes a 5/8" slot drive for more rigidity, hole accuracy and quicker use of accessories such as drill chucks and tapping attachments.

"The HMD917 has many additional features that make the drill easier to use; an integrated coolant bottle which is conveniently located and does not add to the width of the drill, a more robust housing design with an ergonomic carrying handle, a spot to hold the hex wrench, reversible feed handles and a d-ring on the back of the magnet for quickly attaching the safety chain," said the spokesperson. The drill includes positive slug ejection and carrying case. A swivel base magnet is also available.

The HMD917 weighs 46 lbs., measures 25-13/16" H x 8-3/16" W x 12-13/16" L and provides drilling capacities from 7/16" up to 2-3/8" (12-60 mm) diameter and 3" (76 mm) depth of cut. The drill has an electrical rating of 13.5A and 250/450 RPM motor.

"The HMD917 incorporates Hougen's exclusive features to insure a safe work environment including a no-adjustment safety switch which shuts down the drill motor if lift of the magnetic base is detected and an LED indicator that monitors this sensor and alerts if the switch is not engaged," said the spokesperson. A two stage power on switch prevents drill rotation unless the magnet has first been engaged. In the case of a power interruption, safety circuitry will keep the drill motor off after power is restored until the start button is manually depressed. The HMD917 is made in USA.

For more information contact:

Hougen Manufacturing, Inc.

3001 Hougen Drive

Swartz Creek, MI 48473

810-635-7111 / 800-426-7818

info@hougen.com

www.hougen.com

FABTECH 2016 Booth C21021
