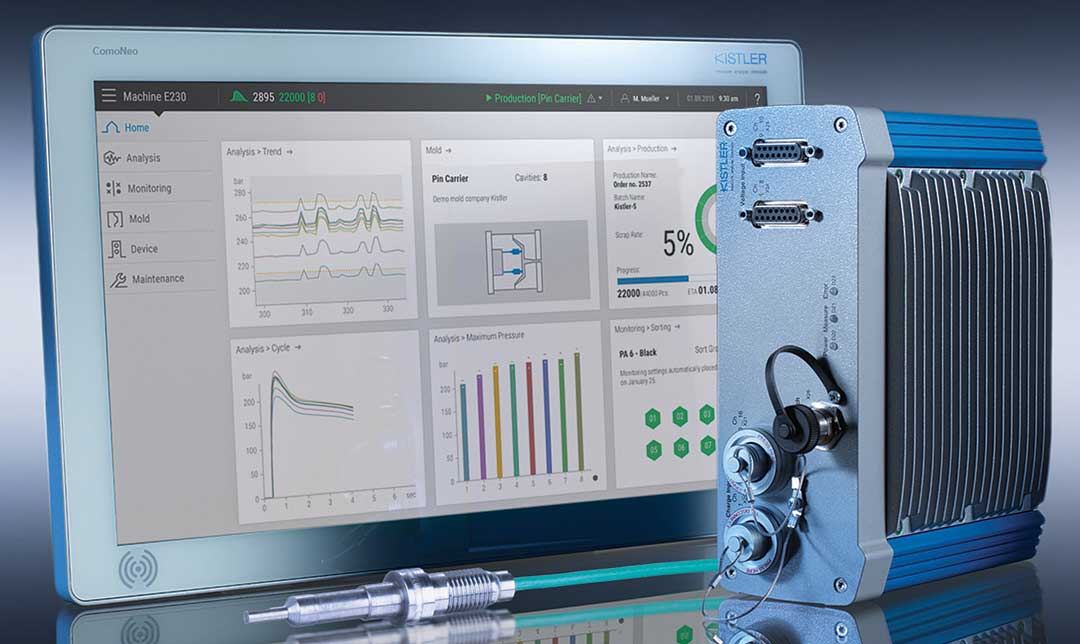

Kistler's ComoNeo process monitoring and control system forms the basis for advanced quality assurance in injection molding.
Quality assurance in medical technology is undergoing a change: away from random sampling and toward automated inspection. This involves automated quality control of each individual part using AI-supported calculation of key product characteristics. The inspection is based on data, such as cavity pressure, which is taken directly from the injection molding tool.
New medications are available to treat diseases such as diabetes and Parkinson's, and as a result, the demand for certain medical devices, such as auto-injectors, is rising. The medical device industry needs rapid ramp-ups of additional production capacities to keep pace with the growing demand without compromising quality. If, for example, an insulin pen does not work reliably, the consequences can be life-threatening. Manufacturers need to protect themselves as well: in case of a malfunction, they must provide proof that they have exhausted all technical possibilities to prevent production errors. State-of-the-art technology now offers significantly more thorough options than statistical process control via physical sampling, which is still widely used in the medical device industry.
Advanced Quality Assurance in Injection Molding
In automated 100% inspection, every single part is checked. An AI model uses data from sensors in the mold to calculate important quality parameters, such as the dimensions and weight of each individual produced part. In plastic injection molding, the well-established cavity pressure measurements and contact temperature form the basis for these calculations. Often, switching to the new method is merely a question of software and a change in the interaction between production and quality assurance.
"We at Kistler are seeing more and more manufacturers from the medical industry turning to state-of-the-art production processes with automated quality control to ensure maximum safety during rapid ramp-ups," explained Dr. Oliver Schnerr, Head of the Business Unit Plastics at Kistler. "Our experts provide support in implementing this new form of quality assurance as quickly and efficiently as possible."
Automated Quality Control with AI
Kistler recently showcased its complete measurement chain for automated quality control, from sensors to process monitoring and control to data documentation. Among other things, visitors were able to see the smallest combined cavity pressure and temperature sensor. The data collected by the sensor is evaluated and analyzed by Kistler's ComoNeo process monitoring system, which collects pressure and temperature data in real time throughout the entire injection molding cycle. By comparing it to reference curves, ComoNeo reliably detects deviations.
A suitable solution for automated quality control is the additional software feature ComoNeoPREDICT in combination with the STASA QC software, which performs model analyses for process validation. Based on these analyses, ComoNeoPREDICT uses AI to calculate the quality of each individual part. The AkvisIO process data management platform documents the results and consolidates them with data from other sources. In addition to documenting processes and quality, AkvisIO allows process data to be analyzed over longer production runs and periods of time. This enables medical technology manufacturers to perfect their processes while ensuring that they comply with the highest FDA and MDR standards and deliver safe products to their customers.
Authored by Kistler Instrument Corp.
