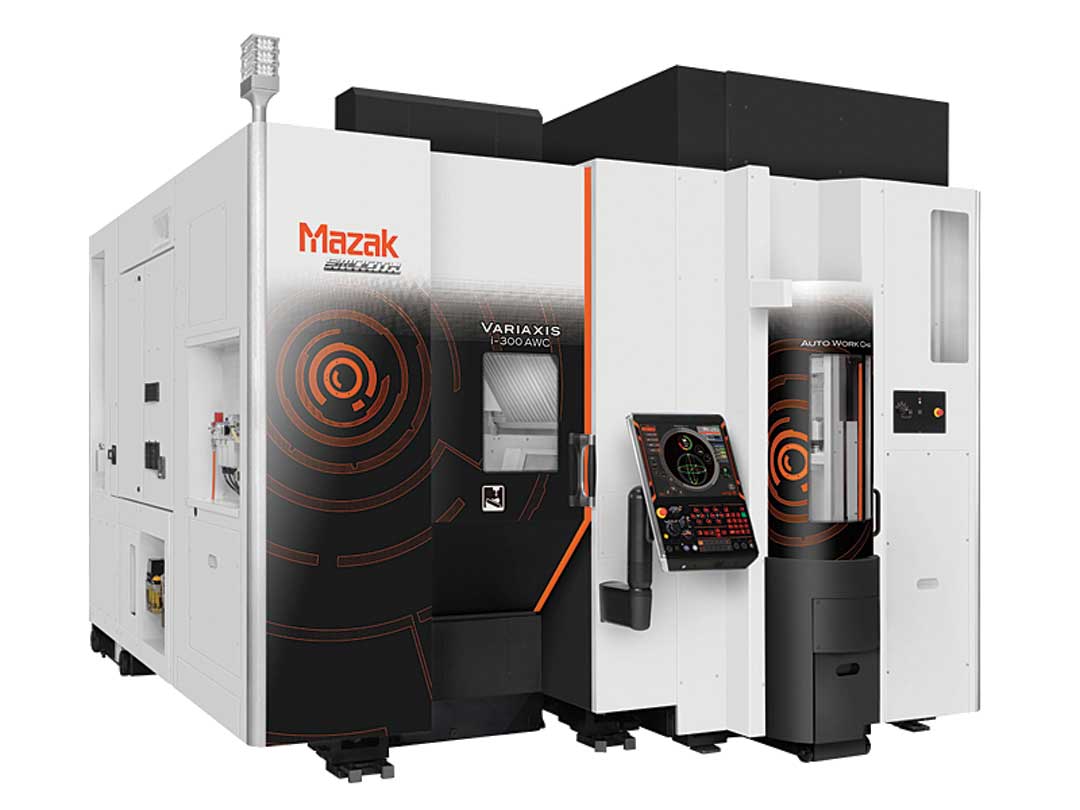

Mazak's versatile VARIAXIS i-300 simultaneous 5-axis VMC with a high-capacity Auto Work Changer (AWC) was recently featured in the Advanced Machining Action Area at the company's DISCOVER 2025 event. Designed for automated small- to medium-size part-processing operations, the VARIAXIS i-300 AWC is especially suited for machining aluminum and other nonferrous metals in a wide variety of industries, including aerospace, medical and automotive.
The machine comes standard with a multiple drum tool storage system that holds up to 145 tools, while the AWC with 32 positions accommodates workpieces up to 13.779" (349.99 mm) in diameter, 12.401" (314.99 mm) high and weighing up to 132.2 lbs. This combination of ample tool and workpiece storage capacities allows even the busiest shops to achieve continuous unmanned operation and single-set-up, DONE IN ONE processing. As production needs increase, shops can expand the AWC and tool storage capacities to 40 workpieces and 505 tools (in increments of 60 tools), respectively. Despite this large capacity, the machine has a significantly smaller footprint due to its stacking 30-tool drum magazines.
In addition, the VARIAXIS i-300 AWC builds upon the existing success of the VARIAXIS Series. The machine features a standard 12,000 RPM spindle, and Mazak offers an optional 25,000-RPM spindle as well as 60,000 and 80,000-RPM UltraSpindles. With the company's integral spindle/motor design and temperature-controlled coolant, the VARIAXIS i-300 AWC enables vibration-free, high-speed operation. Additionally, its trunnion-style rotary table provides high rigidity and accuracy in the A and C axes, while its compact spindle cartridge, cam-driven tool changer, ball screw core cooling, and MX Hybrid Roller Guide System all contribute to operator ease of use and machining precision.
The VARIAXIS i-300 AWC features Mazak's MAZATROL SmoothX CNC control. Its software solutions include the SMOOTH Energy Dashboard to help shops meet sustainability goals, SMOOTH Thermal Shield and MAZACHECK to calibrate temperature and axes alignment respectively, and multitouch capacitive screens for searching through and modifying cutting programs. The latest addition to the SMOOTH TECHNOLOGY suite is SMOOTH AWC, which keeps track of present and future tool resources, both at the machine and, with the addition of an optional interface, at an external PC, which allows for truly continuous unmanned operation.
