Self-Centering Vises and Accessories
January 1, 2025

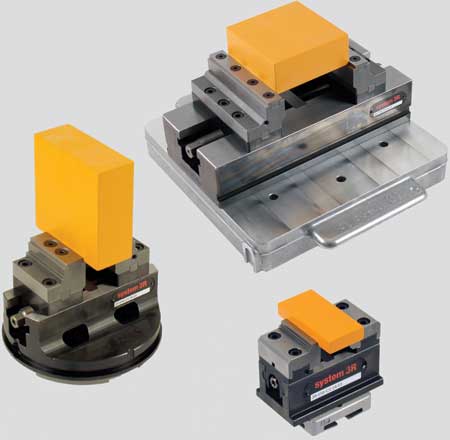

Mounted on pallets or reference elements, System 3R's self-centering machine vises offer high cutting performance, centering and repeat accuracy. Featuring durable, one-piece construction, these vises are designed to provide high clamping and holding forces. The centering vises are mounted with a symmetry accuracy of 0.02 mm. Various inserts are available.
Dynafix 3R-778-CV:
- Vise length: 280 mm
- Jaw width: 125 mm
- Clamping length: 186/246 mm
- Clamping force: 50,000 N
- Weight: 22.8 kg.
MacroMagnum 3R-688-CV:
- Vise length: 160 mm
- Jaws width: 60 mm
- Clamping length: 49/93 mm
- Clamping force: 30,000 N
- Weight: 6.8 kg.
Macro 3R-658-CV:
- Vise length 80 mm
- Jaws width 36 mm
- Clamping length 30/78 mm
- Clamping force 16,000 N
- Weight 0.9 kg.
For more information contact:
System 3R
www.system3R.com
