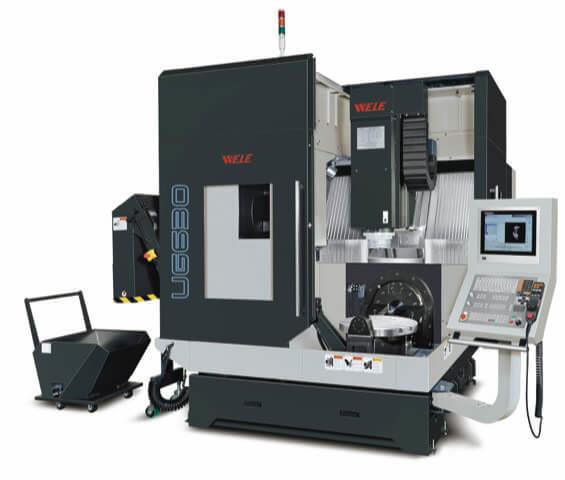

Built to deliver enhanced quality, reliability and 5-axis performance, JTEKT Machinery's WELE UG630 VMC features an advanced overhead gantry design plus integrated, high-precision trunnion rotary table, enabling more operations in a single set-up.
Vibration-dampening Meehanite cast iron base and large precision spindle bearings provide increased rigidity while sustaining higher load capacities. The UG630 includes a HEIDENHAIN TNC 640 CNC plus touchscreen display to optimize machining capabilities.
The UG630 VMC features X-axis travel of 640 mm/25.1"; Y-axis travel (spindle head) of 520 mm/20.4"; and Z-axis travel of 460 mm/18.1". Rotating range of the C-axis is a full 360°. Swiveling range of the B-axis is -50°/+110°, maximizing tool access to surfaces of the workpiece.
Rapid feedrate (XYZ) is 40 m/min (914 in/min). Workpiece clamping area is 650 mm/25.5". A 60-pocket chain-type automatic tool changer provides all the CAT 40 BIG PLUS tools needed to complete workpieces in a single clamping. The UG 630 also includes a BLUM probe and tool setter package.
Machining speed and power is delivered through a built-in type 38-HP spindle with a speed of 15,000 RPM.
WELE machinery is manufactured under strict quality control. As a production standard, all metal-to-metal contact points are hand-scraped, providing long-term accuracy and true geometry.
According to a JTEKT spokesperson, "For most manufacturers, determining a machine's projected performance and expected profits holds the key to predicting overall return on investment. True ROI, however, lies deeper than just the sum of a machine's annual yield. Viably calculating a machine's ROI requires taking into consideration a number of variables, including a machine's maintenance costs, operating expenses, energy costs, performance and automation opportunities. By only relying on the initial cost and projected profitability, manufacturers fail to recognize key points that can give their facility the highest operational value."
For more information contact:
JTEKT Machinery America Corporation
316 W. University Dr.
Arlington Heights, IL 60004
847-253-0340
info@jtektmachinery.com
www.jtektmachinery.com
