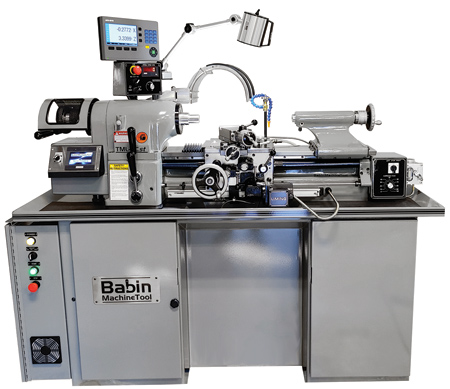

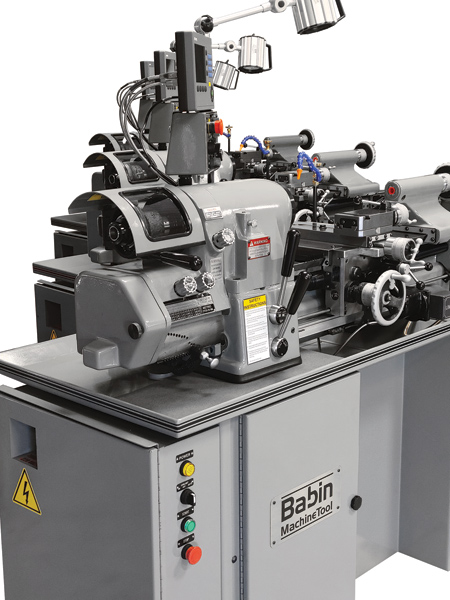

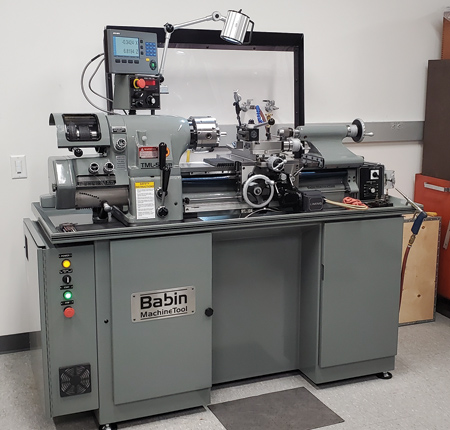

Precision 5C Toolroom Lathe with Servo Threading System

"According to many nationwide customers, Babin Machine Tool has received its well-earned reputation rebuilding Hardinge HLV-H lathes over the past 62+ years in business," said a company spokesperson. "In order to meet our customer and client demand, we have selected the best HLV-H clone and applied our renowned craftsmanship to produce a modern machine worthy to be called a Hardinge clone. Babin Machine offers insight and expertise that no other seller can when it comes to new precision TML-5C toolroom lathes."

Babin Machine Sales announced the continued availability of its high precision 5C style toolroom lathe models: TML-5Cem with STD threading gearbox and TML-5Cst with USA made servo threading system, both designed for the modeling, fast prototyping and low production shop environments.

Features of the TML-5C lathes include: Hardinge style wide dovetail bedplate design, direct drive 5 HP spindle to 3,500 RPM, 5C lever collet closer and high precision .0001" toolroom accuracy. On the new TML-5Cst lathe, manual threading is made easy by using a color touchscreen for data entry of threading information. No gearbox maintenance, knob settings or external gearing is required. A wide range of metric (.1 mm - 6.35 mm) or traditional English pitch (4 - 250 TPI) are included as is the ability to program up to four multistart thread leads and LH threading.

"At our newest central Pennsylvania location, Babin Machine Sales is fully equipped to fit, finish and deliver all of our hand scraped and fully qualified TML-5C lathes to our customers," said the spokesperson. "We also offer house made add-ons, like our chip guards and the MQL Blasta (minimum quantity lubrication) for our lathes."

Additional options for the TML-5Cst lathes include: Acu-Rite or Newall DRO system, chucks, collets and toolpost with tooling.

For more information contact:

Babin Machine Tool

231-B Lawn Rd.

Palmyra, PA 17078
