Multiply Workholding Density
April 1, 2022

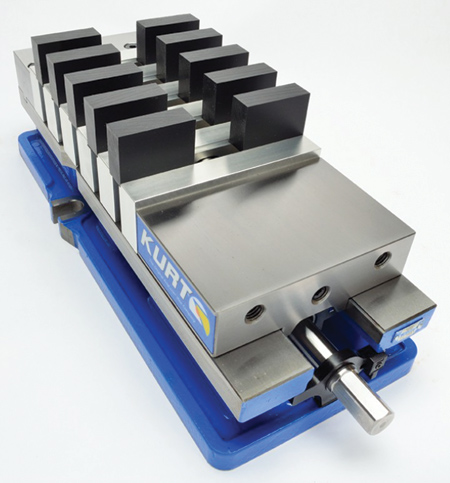

Sveconek LLC offers a high capacity workholding system that can hold up to 10 parts in a single acting machinist vise.
"No need to create fixtures and laboriously tighten and loosen a screw for every part being held," said a company spokesperson. "Simply replace your jaw plates with Sveconek aluminum jaw plates, load the parts, and tighten the vise handle plus one additional screw."
The systems feature an array of floating jaw plates that fit between and interact with the existing movable and fixed jaw plates of the vise. The system is an easy to mount and simple to use accessory that fits most 6" vises, and is offered in different sized kits to accommodate various sizes and shapes of parts. The components of the kits are offered individually to add to and further expand the machinist's workholding needs.
"Sveconek's systems hold up to 10 parts as accurately and repeatably as two parts being held in a conventional vise," said the spokesperson. "The multiple clamping and unclamping operations that occur over a production run are simple to execute and do not diminish the system's performance."
All kits and components are offered in three versions:
- 7075 aluminum jaw plates with an "integrated step" for typical first operations that hold on sacrificial material. Step dimensions: 0.125" wide x 0.115" deep, step seat resides 1.6350" +/- 0.0005" above vise ways. Overall dimensions: 1.25" x 1.75" x 6.0". Jaw plates are anodized for lifelong protection.
- 7075 aluminum jaw plate blanks are machinable for part specific needs. Overall dimensions: 1.00" x 1.75" x 6.0". Jaw plates are anodized for lifelong protection.
- 6061 aluminum jaw plate blanks are machinable for part specific needs. Overall dimensions: 1.00" x 2.00" x 6.0". 6061 jaw plates are intended to be carved again and again to accommodate workholding needs. Jaw plates are anodized for lifelong protection.
The Sveconek system fits most single and dual acting vises, such as Kurt Workholding, Kurt Vise, Kurt High Density Workholding, Kurt DX6, Kurt D688, Jergens Vise, Teco Vise, Glacern Vise and Chick Workholding.
For more information contact:
Sveconek LLC
4208 Glasgow Rd.
Valencia, PA 16059
724-256-1275
info@sveconek.com
www.sveconek.com
