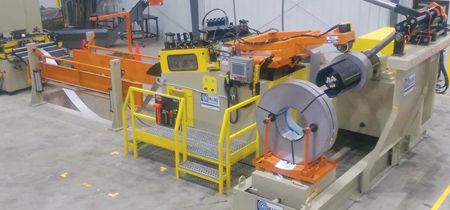

Manitowoc Tool & Manufacturing has taken delivery on a Dallas feed line similar to the one pictured.
Dallas Industries announced that Manitowoc Tool & Manufacturing has taken delivery on another new conventional feed line.
The line is a fully automated 48" wide conventional line featuring a model DRFH-530 servo feed, a threading table over the loop, a peeler/threader/coil restrictor, a model DPS-3.5-7-30 powered straightener and a 20,000 lb. load capacity reel with load car.
To enhance set-up, the unit incorporates the feeder passline height, edge guides, and coil guide rolls for auto coil centering of the coil on the uncoiler, all of which are automatically adjusted to position. The settings for these axes are stored in the job recipe-a Dallas feature termed AutoSet.
The line is built on an Allen-Bradley, ethernet-based control architecture and features SyncLoop and ProfileSelect. The SyncLoop control synchronizes the feeder and straightener speeds to enhance the loop's stability and control.
ProfileSelect is a feed control system that is exclusively available through Dallas Industries. It uses a cam-motion (sinusoidal) profile. This smooth profile results in a feed motion that utilizes 100% of the press feed window, reducing stress on the material and the feed's mechanical components.
Manitowoc Tool and Manufacturing is a production metal stamping, metal fabrication and tool & die facility. The company provides turn-key solutions from initial design all the way through assembly.
For more information contact:
Manitowoc Tool and Manufacturing
4330 Expo Drive
Manitowoc, WI 54220
920-686-8232
www.mantoolmfg.com
Dallas Industries
103 Park Street
Troy, MI 48083-2770
248-583-9400
sales@dallasindustries.com
www.dallasindustries.com
