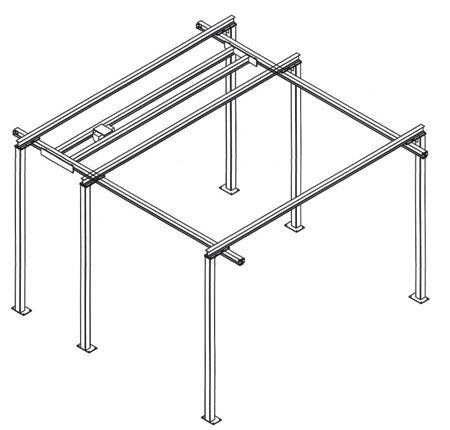

Air Technical Industries has developed a comprehensive series of free-standing workstation bridge cranes. These cranes provide dedicated XYZ movement for any work cell or department. They are offered in do-it-yourself kits, or turn-key installation is available.
For most common economical applications, a simple monorail design is offered. However, the differentiating factor for ATI designs is the low-profile bridge. This double-girder design carries the hoist inside the bridge between the beams so that only the hook hangs below the bridge, allowing for low headroom clearance and maximum utility.
The double girder bridge comes fully assembled, electrically wired and tested-all that is needed is an electric or pneumatic power source. The new design of the double girder with hoist built-in offers great benefits with low headroom and greater working height, according to the company.
The self-supporting feature is suited for a rented building. It requires no modifications to the building structure, and can be installed independent of any existing structural supports. Another feature is that the crane can be used indoors and moved outdoors if necessary.
The bridge span is available in a variety of widths. The runway is available in any length to meet the user's requirements. The bridge and hoist travel can be manually operated for smaller capacities, and can be upgraded to motorized bridge and trolley travel.
Capacities available are 500; 1,000; 2,000; 4,000; 60,00; and 10,000 lbs. Power is 120 VAC single-phase for lighter capacities, or 240-480 VAC 3-phase for larger, heavier capacities.
Pneumatic compressed air operation is also available. Standard control pendant is wired and can be upgraded to wireless radio controls. Customization is offered for special environmental considerations, for example hazardous areas, clean rooms, etc.
For more information contact:
Air Technical Industries
7501 Clover Ave.
Mentor, OH 44060
888-857-6265 / 440-951-5191
ati@airtechnical.com
www.airtechnical.com
