Sealed Spring-Loaded Vise Suited for Industry 4.0
January 1, 2022
SMW Autoblok offers the fully automated compact PTP/PTH Series Twin Vise providing pneumatic and hydraulic clamping force with standard jaw stroke, long stroke or one fixed jaw stroke control.

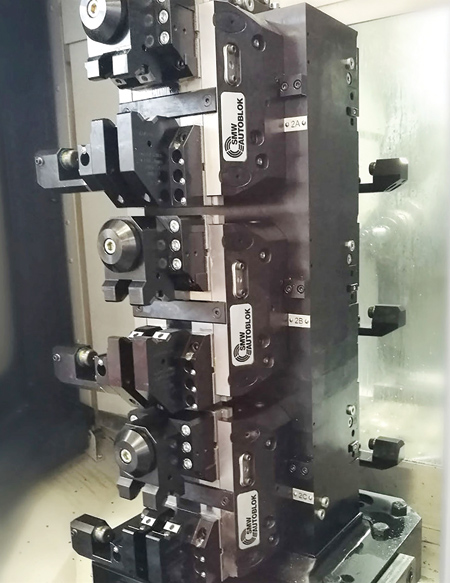

Suited for automation, the self-centering PTP pneumatic and PTH hydraulic Twin Vises offer a seamless solution for tombstone and storage solutions as well as 4- and 5-axis multi-pallet machining centers with or without robot loading.
The PTP/PTH Twin Vises feature a compact design, high failsafe clamping force up to 60 kN, case hardened components for high precision and long life. Effective for both O.D. and I.D clamping, the spring-loaded Twin Vises and can be used with industry standard or engineered top jaws. Optional SinterGrip clamping inserts are available, which provide no dovetailing and 3.5 mm clamping depth (versus 30 mm standard).
"Adding SinterGrip reduces the waste of expensive raw materials and minimizes deformation," said a company spokesperson. "A series of solid carbide serrated inserts grip the workpiece so securely that vibration is virtually non-existent. This stability allows for higher cutting speed and feedrates, which translates into more metal removed in less machining time."
All modules are Proofline sealed and protected against corrosion and feature a built-in air cleaning function to ensure that the clamping system's support surface remain clean and free of chips during changeover or automation. This feature reduces maintenance and production time and provides a repeat accuracy of up to 0.01 mm. Sizes include 100 mm, 120 mm, 160 mm and 200 mm.
For more information contact:
SMW Autoblok
285 Egidi Drive
Wheeling, IL 60090
847-215-0591
autoblok@smwautoblok
www.smwautoblok.com
