Combination Vertical/Horizontal Milling Machine

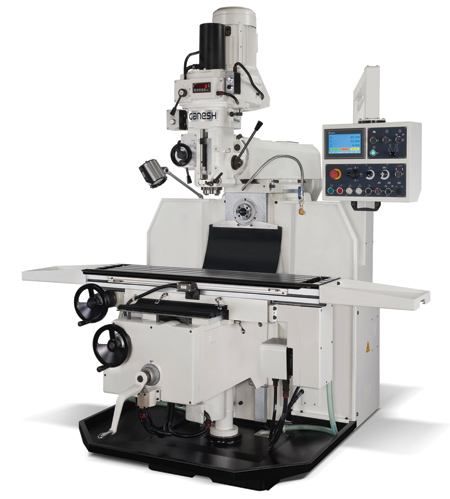

Expand Machinery has introduced the Ganesh LC-205F, a combination vertical/horizontal milling machine for R&D, short runs and repair work.

The machine features integrated DROs for position display and a 12" x 51" worktable. The 7.5 HP variable speed #40 taper spindle runs in 2-gear ranges from 60 RPM to 4,500 RPM to provide heavy-duty cutting capability. An LED digital spindle speed display is provided for easy viewing.

Servo motors drive the ballscrews for X and Y positioning. Power knee and power quill drive are included. Hardened and ground ways in the Y and Z axes provide wear resistance to help ensure a long and productive service life.

"Users find that the flexibility of being able to fixture the workpiece from either the vertical or horizontal spindle can provide greater cutting rigidity, which results in greater productivity. This approach is beneficial both for short run and for stock preparation, or roughing or finishing a CNC production workpiece," said a company spokesperson.

For more information contact:

Expand Machinery LLC

20869 Plummer St.

Chatsworth, CA 91311

888-542-6374/ 818-349-9166
