VMC Offers Jig Milling/Boring Accuracy with Machining Center Productivity

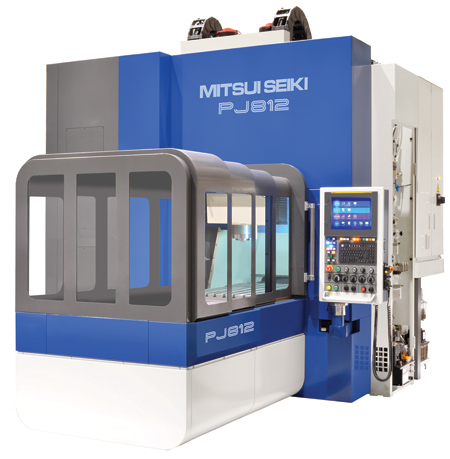

Mitsui Seiki has launched the PJ812 CNC vertical machining center (VMC). With the "J" representing "jig," The solution provides machining center technology and jig borer precision in one machine, making it suited for machining critical medical, optical, electric vehicle, mold and die and aerospace parts. The machine provides precision boring, milling, drilling and tapping for more complete machining of precision components.

The PJ812 offers XYZ travels of 1,200 mm, 800 mm and 500 mm. Maximum work size is 1,200 mm x 800 mm. Table load accommodates 1,500 kg. The VMC provides positioning accuracy and repeatability of +/- 1µm.

A thermal compensation system employs sensors on the machine faceplate and inside the spindle to minimize the effects of temperature changes on part accuracy and cut temperature-generated displacement by 60%. This system also reduces Z-axis thermal growth and deflection by 30%. Cooling systems for slide way lubrication and ball screw cores stabilize axis feed precision.

Mechanical design features that maximize machine rigidity and accuracy include hardened and ground tool steel box slideways as well as contact elements that enhance acceleration, reduce stick-slip and allow for feed accuracy of 0.1 µm. "Another proprietary engineering detail improves the static rigidity of the Z-axis to more than 6x that of conventional Z-axis arrangements," said a company spokesperson.
