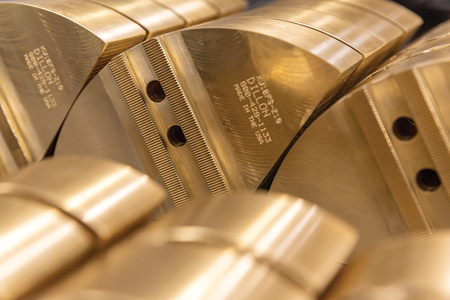

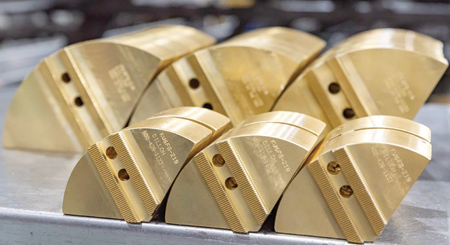

Brass Pie Jaws Hold Delicate Materials Securely



Dillon Manufacturing offers brass pie jaws designed to firmly grip delicate workpieces without marring or distortion.

Maximum contact area from the full grip jaws provides a solid gripping surface, which yields more friction for drive with reduced part distortion, while the brass provides a softer surface without marking of the workpiece surface.

Standard parts are available to 32" in diameter with custom designs available with special heights, diameters and configurations, including a matching serration location that is exactly perpendicular to the slots. They are suited for components fabricated from brass, aluminum, bronze and other softer, malleable alloys.

Dillon full-grip chuck jaws are made in the USA and suited for high-speed machining, as well as precision boring, tapping, drilling and finishing across virtually all industrial markets. In addition to brass, Dillon Full Grip Pie Jaws are available in 6061 aluminum, 1018 steel and cast iron.

These wrap-around type top jaws distribute more of the gripping pressure across the workpiece, reducing part distortion. Dillon standard and custom full-grip jaws are available in serrated, tongue & groove serrated, Acme serrated and square serrated designs.

For more information contact:

Joseph Shouvlin

Dillon Manufacturing, Inc.

2115 Progress Drive

Springfield, OH 45505

888-471-3106

sales4@dillonmfg.com

www.dillonmfg.com
