Flexible Robotic Painting Solutions

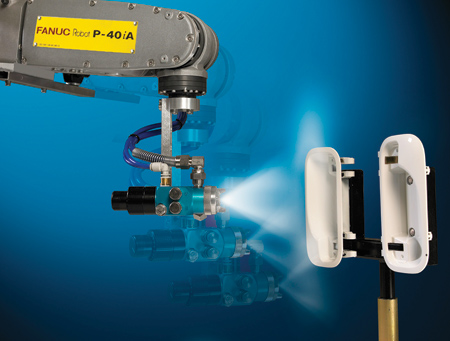

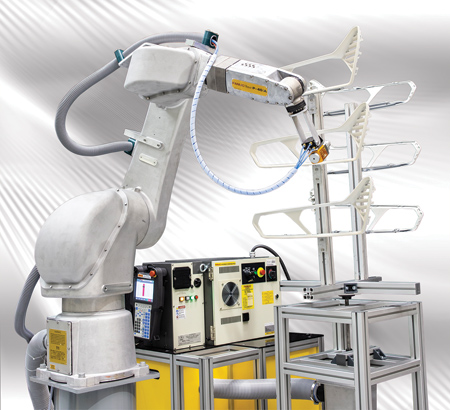

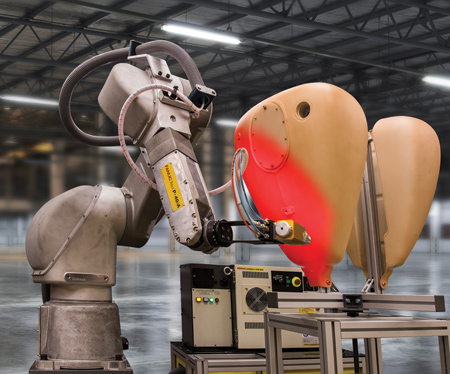

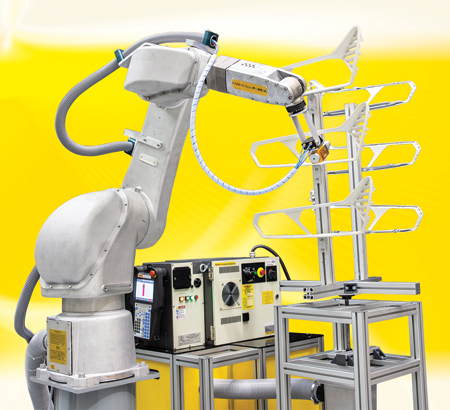

FANUC America offers flexible robotic painting with its compact and powerful P-40iA paint robot.

The FANUC P-40iA robot is the latest in a series of painting robots designed and built by FANUC at the company's Rochester Hills, MI, headquarters since 1982. The 6-axis P-40iA is suitable for a variety of painting and coating applications.

"The P-40iA robot is extremely flexible and easily adapts to small lot sizes, new styles and other modifications, providing customers an affordable and versatile solution," said a company spokesperson. "Slim and lightweight, the P-40iA robot offers a variety of mounting positions, which helps companies challenged with small and narrow workspaces."

P-40iA features and benefits:

  • Compact arm design fits in small work areas.
  • Offers a 1,300 mm reach and 5 kg payload.
  • Purged and pressurized arm is FM and ATEX Class Div. 1 approved; maximizes reliability with FANUC's standard purge module; offers integrated solenoid valves for gun trigger.
  • High-speed operation minimizes robot cycle times.
  • Upright, invert, angle or wall mounting accommodates a wide range of work areas.
  • The latest R-30iB Mate Plus controller features an intuitive iPendant with enhanced screen resolution and more processing capability compared to previous versions. Supports integrated iRVision and PaintTool Software.
  • IP67 compatible rating allows operation in factory environments with dust and oil mist.
  • Complete paint process control capability.
  • Integrated 2k fluid control option.
  • Offline programming support with FANUC ROBOGUIDE PaintPRO Simulation Software.

For more information contact:

FANUC America Corporation

3900 West Hamlin Road

Rochester Hills, MI 48309-3253

888-FANUC-US (326-8287)

www.fanucamerica.com
