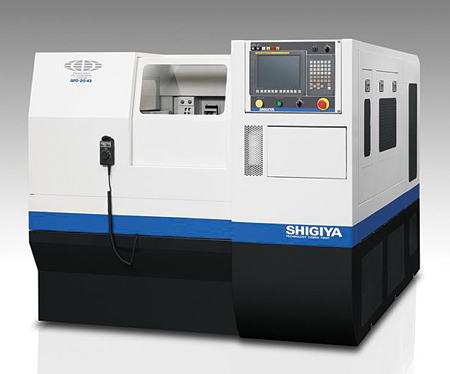

Double Drive CNC Cylindrical Grinders



SHIGIYA (USA) LTD.'s GPD Double-Drive CNC Cylindrical Grinders feature a completely new design that uses a double center drive system. "These grinders are based on the fundamental concepts of no set-up required, improved processing accuracy and improved maintenance," said a company spokesperson.

The GPD is equipped with NC movable workheads on the left and right sides. The distance between centers can be adjusted without changing the set-up to support workpiece lengths between 30 and 430 mm. The CBN wheel, in combination with a multi-step sizing in-process gauge, works to achieve consistent processing accuracy with high precision.

The GPD features a o 200 mm swing over table, a distance between centers of 430 mm and a maximum grinding diameter of 80 mm.

For more information contact:

Hiroshi Kirihara

SHIGIYA (USA) LTD.

651 E. State Pkwy

Schaumburg, IL 60173

847-325-4800

contact@shigiya.com

www.shigiya.com
