Wrench Operated Collet Chuck has 6 Inch Diameter Capacity
February 1, 2016
Wrench Operated Collet Chuck has 6" Diameter Capacity

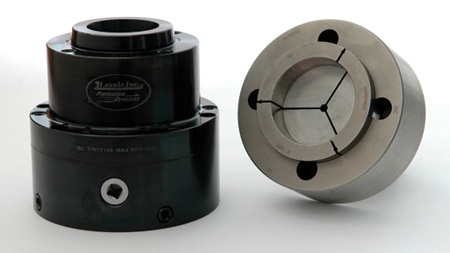

Lexair's model 16C wrench operated collet chuck has an integral A2-5 nose to accommodate standard 16C collets up to 1.625", as well as bolt-on closing rings and I.D. mandrels. The 6" diameter capacity chuck features a universal flat back design and is concentrically adjustable for optimum accuracy. The collets are designed for use on hybrid CNC/manual teach lathes, and can also be used with a variety of lathes, mills, grinders, indexers and other rotating spindle equipment when used with various mounting plates available from Lexair.
The model 16C collet is operated via a T-handle chuck wrench and does not require draw bars or cylinders. This is the latest in the company's line of wrench operated collets including the 5C, 3J and 22J, with workpiece capacities of 1.06", 1.75" and 2.25" respectively.
For more information contact:
Steve Breslin
Lexair, Inc.
2025 Mercer Road
Lexington, KY 40511
859-255-5001
sbreslin@lexairinc.com
www.lexairinc.com
