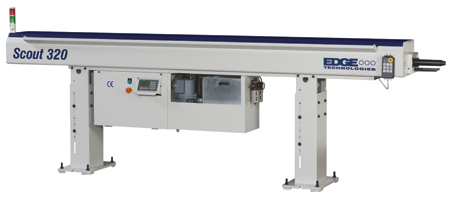

Edge Technologies' Scout 320 12' magazine bar feeder features a 3-20 mm diameter capacity, quick-change polyurethane guide channels, hand-held pendant and a Swiss synchronization device.
The Scout 320 magazine bar feeder from Edge Technologies is designed for feeding round, square and hexagonal bar stock in a diameter range of 3-20 mm and lengths up to 12' into CNC lathes. Its construction features heavy gauge structural steel that is designed to ensure rigidity and long-term durability. A two-pusher system is built to reduce the overall length of the unit by as much as 4'. A short pusher pre-feeds the bar then retracts, and then a second full-length pusher lowers into position to continue the feeding process. A toothed belt, designed for accuracy and smooth running, propels the Scout 320's double pusher system.
As a standard feature on the Scout 320, the synchronization device for Swiss-style lathes employs an electro-magnetic coupling, mechanically linking the lathes headstock's Z-axis travel to the bar feeder's pusher to ensure synchronous movement and no loss of connection between the bar stock and pusher collet.
Dual anti-vibration devices stabilize the bar stock at two points between the guide channel and lathe spindle maximizing RPM potential. Its adjustable roller design provides enhanced support and easy set-up of all bar diameters without the cost of multiple bearing blocks.
The Scout features a 3-20 mm bar diameter capacity with hydrodynamic quick-change polyurethane guide channels. An extruded aluminum case surrounds the Scout's polyurethane guide channels, increasing strength and stability. The channel is flooded with oil to create a hydrodynamic effect to support the rotating bar resulting in the ability to run at higher RPM with reduced noise and vibration. The top guide channel is profiled for all bar stock sizes. The "U" shaped bottom guide channel sections slide easily out of their base. To make the change for a new channel size, a new section is inserted, a screw is tightened and the Scout is ready to run a new bar stock diameter.
The Scout 320 features the convenience of an easy-to-use remote control pendant with a Mitsubishi control and servo drive that provides the Scout's motion control and functionality. Functions include: manual and automatic operation, manual load/unload of bar stock for set-up and/or change over, movement of bar pusher and the emergency stop. The control is easy to program, yet flexible enough for all applications. Parameters are set through simple F functions. Alarms are defined and displayed on the operator control panel; panel swings out for ease of use.
