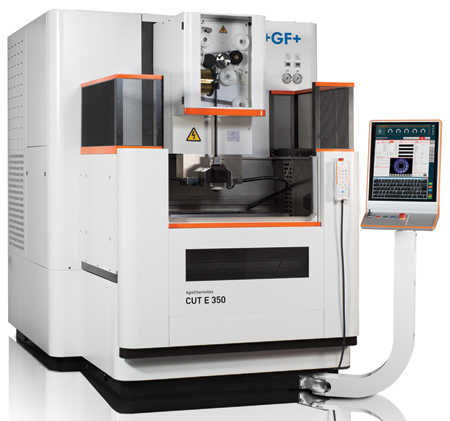

GF Machining Solutions has introduced the CUT E 350, the first machine in its CUT E Series of high performance and high productivity wire EDMs. The CUT E Series incorporates a broad range of technologies to help manufacturers increase their flexibility and accelerate their time to market.
The CUT E Series incorporates a large touchscreen human-machine interface (HMI) that is intuitive in operation and includes onboard Intelligent Collision Protection, built-in machining strategies and flexible job management. Information about geometries, machining processes and command programs is processed in a single file. This allows jobs to be transferred among different machines in the CUT E Series, with the machines automatically managing all needed modifications. Additionally, more than 10 automated measurement cycles are available to assist with workpiece preparation and the onboard AC CAM Easy allows an operator to prepare an ISO file and post-process it into a job during machining.
The CUT E Series features the Intelligent Power Generator (IPG) to further improve cutting speed, precision and surface quality. The machine can use dedicated wire for decreased part cost and increased throughput, and the POWER-EXPERT module automatically determines the optimal power to send through the wire, which is especially beneficial in stepped parts. The Corner Strategy module automatically adjusts parameters during changes in direction to produce sharp angels and small radii. These features combine to reduce cutting times by up to 18%.
Machine ergonomics and design have also been improved with the CUT E Series. The machines feature a compact, space-saving design that incorporates high rigidity to enable accurate cutting of large and heavy parts. A drop door provides access to the table and side-by-side filters are accessible to simplify maintenance.
"Integrated glass scales are designed to preserve long-term, repeatable accuracy, require no recalibration and eliminate errors found in screw systems due to backlash and wear," said a company spokesperson. "The CUT E 350 allows use of an optional large, 25 kg spool to facilitate greater levels of automation and unmanned machining. It also features a reliable wire circuit system for perfect unrolling that does not disrupt the EDM process."
For more information contact:
Gisbert Ledvon
GF Machining Solutions
560 Bond St.
Lincolnshire, IL 60069-4224
800-CTC-1EDM / 847-913-5300
gisbert.ledvon@georgfischer.com
www.gfms.com/us
