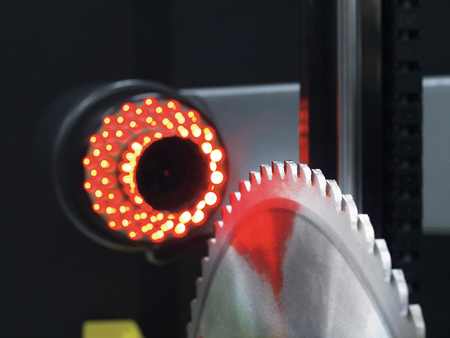

Incident light saw check

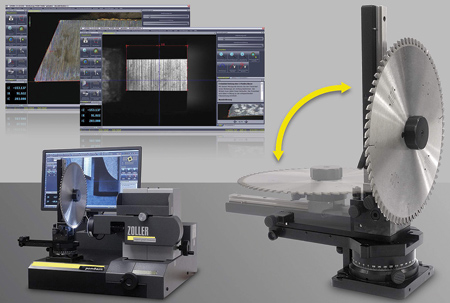

»pomBasic« saw blade holder

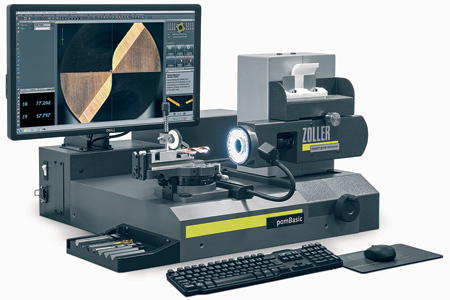

The »pomBasic« measurement system

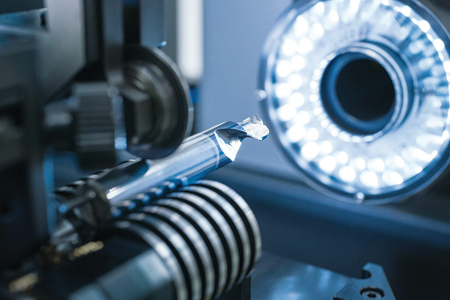

»pomBasic« for universal tool inspection

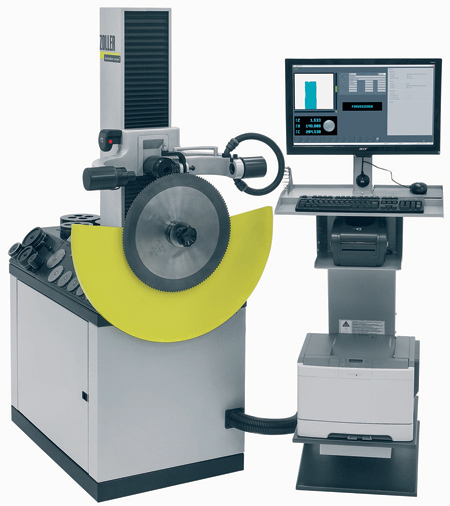

»sawCheck«
Zoller offers its »pomBasic« and »sawCheck« inspection machines.
The Zoller inspection device »pomBasic« is a compact solution for universal tool inspection. The image processing software »pomSoft« measures any geometries of drills, milling cutters, countersinks - and now also saw blades.
Due to a specially developed holding fixture and a 90° vertical and horizontal swivel axis, all the parameters of a saw blade can be quickly measured - just insert tool and select measuring parameters.
With »sawCheck«, Zoller offers a solution for the fully automated measuring of saw blades fully with high precision and independent of operators. During inspection, parameters such as tooth shape, pitch, concentricity, axial run-out under transmitted light and effective cutting angle, draft angle, tooth thickness, offset or wear under incident light (radial/axial) can be checked contactless and quickly.
As an option, a measuring sensor can be used to determine the run-out of the saw body and this can be taken into account when measuring the parameters. "Measuring and inspecting saw blades, together with determining the wear prior to re-grinding, can provide a 20% increase in productivity in manufacturing operations," said a company spokesperson.
Features of the »sawCheck«:
- Zoller image processing »pilot«
- Ergonomic operating elements
- Consistent use of branded products
- Robust and workshop compatible
- Flexible adaptation to manufacturing operations
- Autofocus, hollow shaft encoder and spindle brake
- Swivable tool inspection
- Measuring sensor
- Protective housing and basic design.
