Fully Automatic Punch and Shear Processing System
December 1, 2015
Trilogy Machinery, Inc., the exclusive United States distributor for SUNRISE products, offers the SUNRISE APS fully automatic plate processing system.

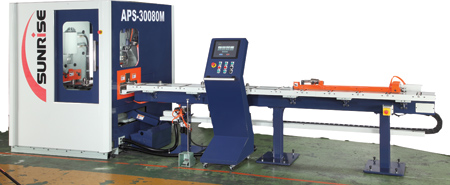

The SUNRISE APS is a complete plate processing system capable of both punching and shearing simultaneously. The fully enclosed system is driven by a powerful rack and pinion in-feed capable of handling up to 40' lengths of material at speeds up to 40' per minute. Standard features include pneumatic clamping, hydraulic plate hold-down, hydraulic stripper, touchscreen control and triple punch.

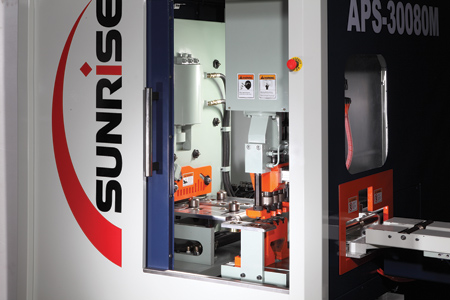

The APS allows hands-free operation for the complete processing of flat bar up to 20" wide. Models featuring the triple punch allow the operator to assign one of three punches to any particular hole, including spot marks. According to a company spokesperson, a plate shear anti-twist feature allows even the smallest plates to be sheared straight. The Y-axis is a specially designed hydraulic punch driven on high-speed linear rails, allowing the operator to punch across the entire width of the plate. Pneumatic material guides, auto-lubrication system and rolling slug bucket are all standard items.
The operation and programming are CNC controlled using a touchscreen control featuring operator-friendly programming with nesting capability. The operator simply positions the plate on the in-feed table, initiates the pneumatic clamping and the machine processes, punches and shears the plate automatically.
Trilogy Machinery offers 100% factory authorized service and support as well as a full stock of spare parts and accessories.
For more information contact:
Trilogy Machinery
4610 Mercedes Dr.
Belcamp, MD 21017
888-988-ROLL / 410-272-3600
inquiry@trilogymachinery.com
www.trilogymachinery.com
