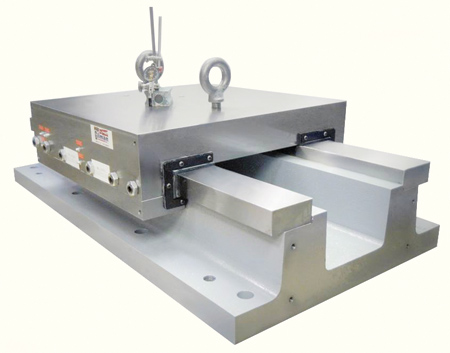

Predominantly used for high production, hardened way slides provide linear rigidity for heavy-duty applications.
"A hardened way slide is a linear positioning device that incorporates precision, ground rectangular way guides," said Gilman CEO Chris Hetzer. "It is used when accuracy, dampening and rigidity are required while positioning."
The amount of friction created by a hardened way slide and a linear guide slide is the prime difference. A linear guide slide is guided by rolling elements, either ball or cylindrical rollers. These rollers allow the slide to operate with zero friction, creating less heat, and therefore move faster.
In contrast, hardened way slides are guided by the plain bearing leading to more area of direct contact. This generates more friction and decreases speed, but increases durability.

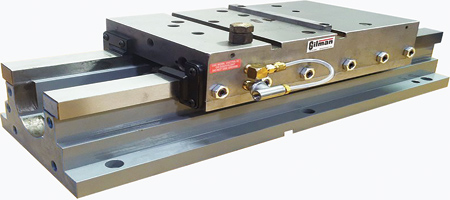

"A hardened way slide has hardened and ground replaceable way guides," said Hetzer. "The moving member, called the saddle, has ground and oil grooved low friction bearing material for smooth, accurate motion and high rigidity."
"To keep a hardened way slide performing as designed, keep the way guides clean from chips and dirt," said Hetzer. "Make sure the wipers that clean the rectangular way guides are in good working order. Also, lubrication is a must, using oil. Never use grease as a lubricant on a hardened way slide."
