Portable Magnetic Drill with Swivel Base
December 1, 2015

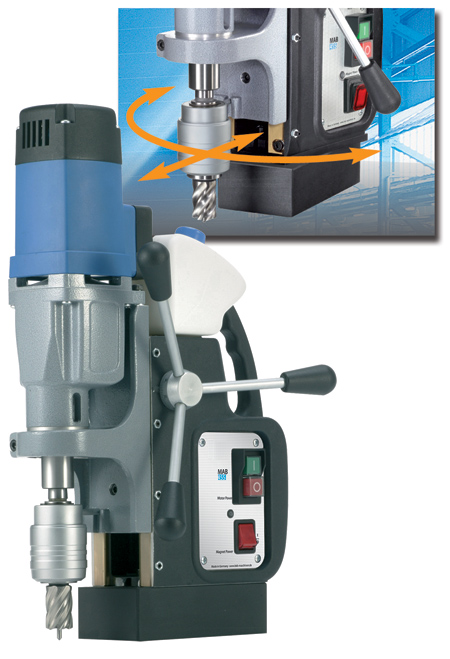

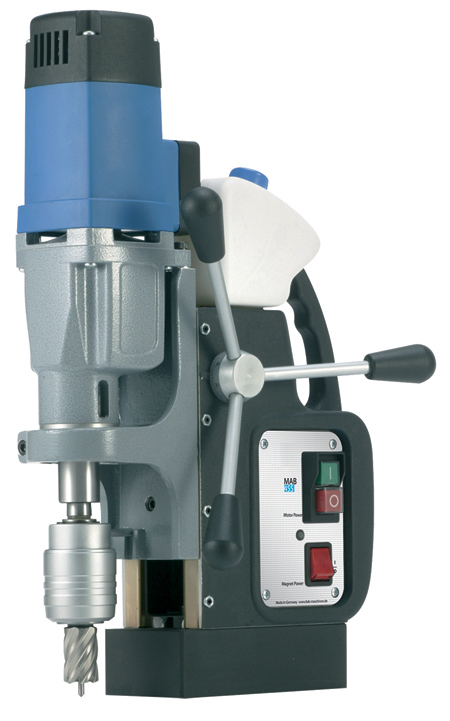

CS Unitec's MAB 455 SB portable magnetic drill features a swivel base that provides 20° movement left and right and 5/8" forward and backward for drilling in hard-to-reach areas. With intelligent electronic torque control and a stroke length of 6-1/3", this drill is designed to cut holes up to 2" in structural steel and other metals. Additional capabilities include twist drilling up to 7/8" diameter with optional 3/4" chuck. The 10.5 amp, double-insulated motor has a 2-speed oil bath gearbox (250 / 450 RPM) that is ideal for annular cutters and twist drills. This unit has a quick-change keyless cutter system for 3/4" Weldon Shanks.
Integrated safety features in the MAB 455 SB include visual magnet adhesion indication and an electronic safety shutoff sensor to automatically shut down the drill motor if the magnet loses contact with the material. An internal cable routing system helps protect the motor power cord from external damage. Simple ergonomic arrangement of controls allows for one-handed operation. The magnet has a holding force of 3,750 lbs.
For more information contact:
Thomas Carroll, President
CS Unitec, Inc.
22 Harbor Avenue
Norwalk, CT 06850
800-700-5919 / 203-853-9522
info@csunitec.com
www.csunitec.com
