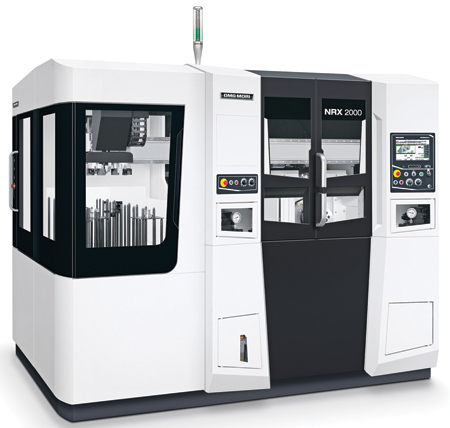

Equipped with two motor spindles and two 8-fold disk turrets, the NRX 2000 is designed for simultaneous machining processes on both work spindles in the "Stealth Design." The two work spindle units with 5,000 RPM as standard can be moved in the X- and Z-axis, two stationary tool turrets in the front area of the machine – ideally protected from chips or coolant – provide space for eight tools (optionally 10).
Traverse speeds of 1,181 in./min and the integrated loading and unloading system also contribute to the productivity of the NRX 2000. For example, the gantry loader with charging times of 5.6 seconds reduces idle times, supported by the Duo loading unit, which enables fast workpiece transfer from spindle one to spindle two. The dynamics of the loading portal has been enabled by a more compact design and reduction of movable parts – this reduces vibrations, which ultimately results in improved surface quality.
A workpiece stacking feeder with 14 units as standard is integrated laterally, which can receive workpieces of up to 6.61 lbs.
The COMPACTline with 10.6" multi-touch display and the machine design with ergonomics and functionality are engineered for a high degree of user comfort. Accessibility on both tool turrets installed on the front, to chucks and loading and unloading units, is implemented within 11.81 in.
Furthermore, the edgeless chip collection pan and the integrated chip conveyor are built for process-reliable chip disposal. This production cell with its fast automation is designed for autonomous serial production.
The compact design with a width of 64.96 in. and a height of 82.68 in. reduces the space requirement. This means the Parallel Dual-Spindle turning center can be transported in a standard container.
