Complete Parts Machining in One Operation

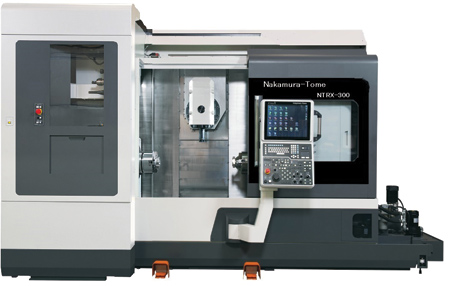

Methods Machine Tools, Inc., a supplier of precision machine tools and automation, has introduced the Nakamura-Tome NTRX-300, a multitasking turning center featuring complete parts machining in one operation, with a built-in load/unload automation system and advanced operator recognition management software. The NTRX-300 features true opposing twin spindles, an 8" A2-6 25 HP or a 10" A2-8 30 HP. The machine also features a 25 HP tool spindle with 12,000 RPM and full 5-axis capabilities, with a FANUC 31I A5 control and offers a large machining area for application versatility. The NTRX-300 is designed to machine a 10" square on the face of a part, with no C-axis rotation required due to X-axis capability of 5" (125 mm) below center travel and a Y-axis capability of 10" (250 mm).

Taking up a compact footprint of only 104 sq. ft. (9.66 sq. meters) of floor space and weighing in at 37,480 lbs. (17,000 kg) for rigidity, the NTRX-300 is available in two models: 8" (203 mm) chucks with 2.5" (63.5 mm) bar capacity or 10" (250 mm) chucks with 3.15" (80 mm) bar capacity. The NTRX-300 is designed with a long 53.15" (1,350 mm) distance between spindles to eliminate any interference of tooling during multitasking. The machine has a standard 40 tool ATC and is available with options for 80 and 120 tool ATC's.

The machine has a unique bed design with a vertical column structure mounted on a horizontal machine bed for rigidity and thermal stability. A uniform load applied over the machine bed during slide movement is designed for stability. The compact design also allows easy reach of the spindle center and a versatile operation panel ensures optimum comfort for the operator. The high performance automation system is equipped with loading and unloading grippers at the ATC magazine.

"The NTRX-300 offers state-of-the-art multitasking, automation and software all in a compact, heavy-duty machine," said Richard Parenteau, Director of Application Development/Nakamura-Tome at Methods Machine Tools, Inc.

The NTRX-300 features an advanced graphic user interface for ease of operation on a large 19-inch color LCD monitor. The new Nakamura-Tome (NT) Smart X Operation Software (using Windows v. 8.1), offers an Operation Level Management Function to view operator clearance level; Productivity Monitor Function that shows the status, productivity graph and capacity utilization of the machine, and a Loading Monitor Function that offers detailed load information. NT setting screen commands and buttons are all integrated into one screen, ensuring easy operation. The NT Smart X Screen enables an operator to view the NC program, while watching 3-D interface check, or look at CNC coordinates while watching the machining area through a video camera.

In addition, the NTRX-300 offers an NT Collision Guard feature to avoid machine collision and an air bag function to minimize damage in the event of a collision. Voice guidance, production management and 3-D collision check are all furnished standard.

CAMplete TruePath Turn/Mill software is also standard on the Nakamura-Tome NTRX-300. CAMplete Turn/Mill software is an integrated suite of G-Code editing, optimization, analysis and verification tools, enabling a full range of turn/mill functions.
