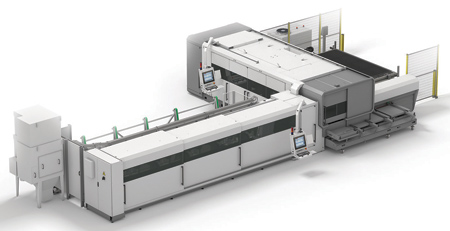

Sheet and Tube Laser Cutting System



BLM Group USA offers the compact LC5. Equipped with a fiber laser up to 4.5 kW, it is a high production machine with automatic loading and unloading that can process both tube and flat sheet in a single machine.

"Due to its design, switching from tube to sheet is fast, adding the flexibility fabricators need to expand their laser processing capability," said a company spokesperson.

The LC5 can handle bar up to 21' in length and tube to 4.75" The processing of sheet metal is fully automatic and built for sheet up to 5' x 10' The fiber laser is designed for cutting both mild steel and highly reflective materials such as stainless steel and for aluminum. The unit is also equipped with an automatic pallet changer and independent controls for both tube and sheet. Further, there are four scrap collection trays for scrap management.

The unit features two separate 19" touchscreen consoles, one on the tube cutting side and one on the sheet side. Optional, for automatic production, is one or two sheet storage towers on the loading and unloading side.

The LC5 takes full advantage of the BLM Group Enterprise Software solution that incorporates full management of lasers, tube benders, end machining and cold saws to manage production with real time production feedback. This optional package incorporated with Artube is designed for seamless programming and production management.

For more information contact:

BLM Group USA

29380 Beck Road

Wixom, MI 48393

248-560-0080

sales@blmgroupusa.com

www.blmgroup.com
