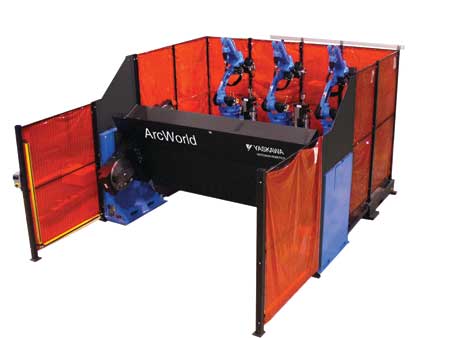

The newly redesigned ArcWorld IV-6200SL "slim line" from Yaskawa Motorman features dual MA1440 arc welding robots with the new DX200 controller, a new high-speed ferris wheel positioner, integrated welding package, operator interface and a total safety environment. The slim line positioner reduces floorspace requirements because the width of the positioner/workcell is only one meter wider than the fixture span. Safeguarding on the workcell has been designed to take advantage of the Functional Safety Unit (FSU) in the DX200 robot controller to provide control reliable safety in accordance with the latest release of the Robot Safety Standard (ANSI/RIA R15.06-2012).
According to the company, the RM2-755SL and RM2-1255SL positioners feature the fastest indexing time in their class. The 755 kg payload version indexes in 2.25 seconds; the 1,255 kg payload version indexes in 3.25 seconds.
Because the positioner can be serviced from the front of the workcell, additional space can be saved by placing cells next to each other without aisles. These positioners are available in standard lengths of 2.0 and 3.0 meters between mounting surfaces and can easily be extended. They provide a turning diameter of 1.3 meters (51.2") to accommodate large parts and tooling.
The RM2 slim line positioners utilize independent servo motor drives on each of the three axes for high-speed positioning. This reduces cycle times by allowing fixtures to rotate into working position while the main sweep axis indexes between stations. Application flexibility is also a benefit because the load station can be programmed to a more ergonomic orientation. The operator can also jog the load station if manual tack welding is required.
The positioners utilize the MotoMount fixture mounting system. According to the company, this patented design provides a flexible pivot to eliminate bearing stresses from fixture misalignment or unlevel floors and extends the life of the drives. MotoMount also provides a horizontal mounting surface with locating pins for easier fixture changeover.
The workcell is available with Yaskawa Motoman's multiple robot control technology. One to four welding robots can be incorporated into the cell and controlled from a single teach pendant. The MA2010 extended-reach robot can be used in place of the MA1440 to reach longer part spans.
ArcWorld is available with an optional nozzle cleaner and/or automatic tip checking devices such as ToolSight. ToolSight is designed to automatically check the robot's Tool Center Point (TCP) and calculate tool offsets to correct the TCP if necessary during production.
A PC-based Human Machine Interface (HMI) is available to show cell and production related data. The HMI provides local control for memory backup and displays diagnostic data in an easy-to-read format on a color touchscreen. Cell I/O and uptime data is presented graphically. Screens are also provided to allow operators to edit weld positions. It has a high resolution 15" LCD touchscreen and is designed to be used in an industrial environment.
For more information contact:
Yaskawa America, Inc.
Motoman Robotics Division
100 Automation Way
Miamisburg, OH 45342
937-847-6200
www.motoman.com
