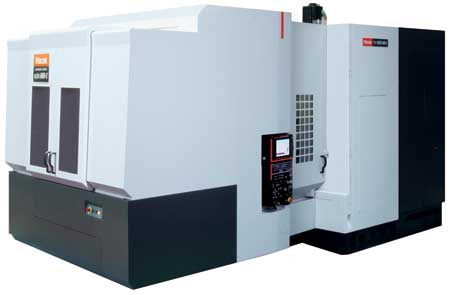

Mazak has paired its ORBITEC 20, which generates turned features on large, odd-shaped parts, with its HORIZONTAL CENTER NEXUS 6800 Horizontal Machining Center and PALLETECH System to showcase a fully automated manufacturing cell.
"The ORBITEC 20 offers an advanced approach to creating turned machining features on stationary, big, odd shaped parts, which are not conducive to normal turning operations. Parts such as those that require turning, threading, tapered boring and phonographic facing are easily and efficiently processed on the machine," said a company spokesperson.

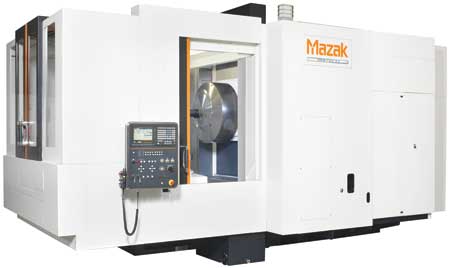

The ORBITEC 20's Mazak-patented headstock design generates turned features on parts by keeping the workpieces clamped and stationary, moving only the cutting tool. As an internally counter balanced system, the ORBITEC 20's headstock, with 40 HP, 600 RPM integrated spindle motor, keeps tool tips facing either toward or away from the centerline of rotation while tools orbit around workpieces. This provides stable precision machining and less part interference because tools do not protrude beyond the rotating headstock when working on larger diameters.
The ORBITEC 20's headstock design is a circle, as opposed to linear slides, within a circle for accurate linearly interpolated X-axis tool movement. For increased part accessibility, the machine's X-axis stroke measures 11.02", while its U, V, and Z-axis strokes are 23.62", 23.62" and 48.43" respectively. The machine turns diameters up to 20", depending on the tools being used, on parts fitting into a working area of 41.34" in diameter and 51.18" in height.
According to the company, part processing versatility is increased with the ORBITEC 20's range of machining operations, including generating phonographic finishes on flange surfaces, cutting tapered bores, and grooving in feed-out operations. The machine also does trepanning, threading, internal grooving, drilling and concave machining.
Equipped with a standard two-pallet changer, along with the availability of Mazak's PMC-WEB cell controller software, the ORBITEC 20 integrates into Mazak's advanced PALLETECH automation system. The machine can then combine with Mazak HORIZONTAL CENTER NEXUS machining centers, including the 6800 model, to create complete Done-In-One large-part manufacturing cells for lights-out operation.
In such a manufacturing cell, workpieces fixtured once on the ORBITEC 20's 24.8" x 24.8" pallets feed into the machine for turning operations. Then, the PALLETECH system transports parts to the machining centers for secondary milling operations and, afterwards, on to any other subsequent operations. "Pallets and part fixtures allow for the economical manufacturing of single-part lots, and tombstones with multi-part fixtures serve higher production needs," said the spokesperson.
With Mazak's PMC-WEB cell controller software over standard PCs and networks, shop management can monitor operations, view and change schedules on-the-fly, manage part program files from anywhere on the network, track tool life/breakage and issue instructions to the shop floor. Users are able to interrupt a planned machining queue and produce an emergency part with no cost penalty.
Mazak Corporation designs and manufactures productivity-improving machine tool solutions. It produces turning centers, multi-tasking machines and vertical machining centers, including 5-axis models.
