(l-r) Arnot Heller and brother Matt Heller beside the Doosan MV 5025/50 50-taper 4-axis VMC, holding a truck bushing machined in the automated MV 5025/50.

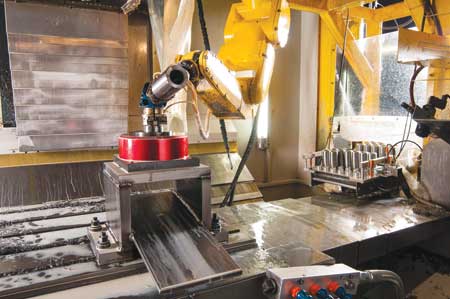

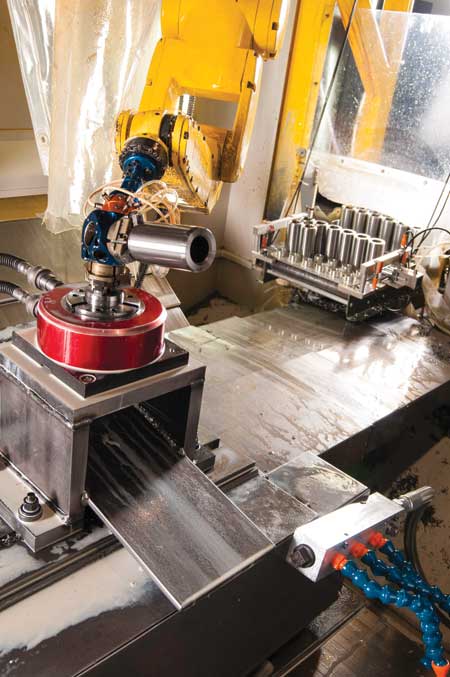

Robot removing blanks from the automatic loading station (right) and removing a finished bushing and replacing it with the blank. Finished bushing is dropped into parts bin.
Finished truck bushings in the parts bin at the Doosan MV5025/50.

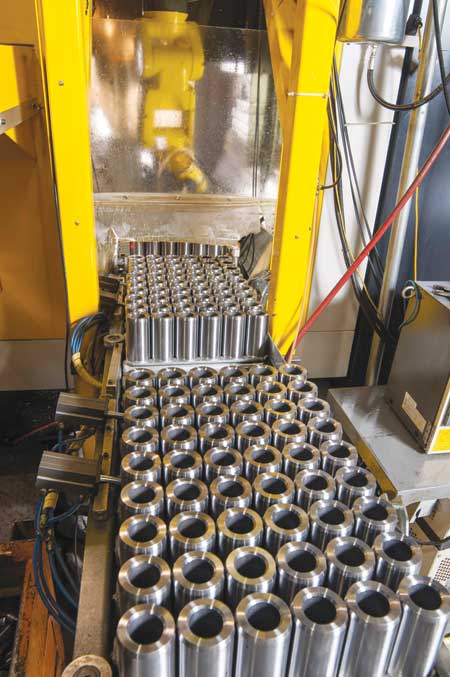

The automatic loading station on the Doosan MV 5025/50 4-axis VMC. Here the bushing blanks await robot picking.
Arnot Heller and his brother Matt own Central Screw Products (CSP), a small machine shop in the suburbs of Detroit, MI, which their father had purchased from his father in the early 1970's. Initially CSP focused on production turning, for customers like Stanley Tool.
Since taking over from their father, Arnot and Matt have made it their goal to venture out into more complex jobs. "That was one of our problems," said Arnot. "Customers tend to put you into a box, and they like to keep you there. They come to associate your name with certain types of parts and capabilities - whether you have exceeded those capabilities or not."
Currently, CSP employs 12 in a 15,000 sq. ft. facility with six machine tools - two 3-axis mills, one Doosan MV 5025/50 50-taper 4-axis vertical machining center (VMC) equipped with automated part loading and robotic part handling and two milling machines with 5-axis trunnion tables that allow 3+2 positioning, and a Doosan Puma MX 1600ST turn-mill multitasking machine with nine full axes. Common materials include aluminum, carbon steel, stainless and tool steel. Major markets are heavy truck - in particular suspension components - and auto racing. Tolerances are typically 0.001" to 0.0002" when hard turning.
"We had a light duty VMC doing critical taps on a heavy truck bushing, and the machine had enough power and torque to drive one of the critical taps, but it could not drive the other," said Arnot. "So, we started thinking about buying another VMC, with more torque and more rigidity. About this time I had been talking to an industry peer who had successfully replaced a lot of their VMC's with heavy-duty machines from Doosan."
Arnot researched the specifications for the Doosan range of VMCs and found that he could get a VMC for a competitive price and quick delivery from Doosan with the high performance specifications Arnot required. The Doosan MV Series features box guideways, which provides rigidity, and could be ordered with a 50-taper spindle, which is capable of taking deep cuts. So, in 2009 Doosan had an MV 5025/50 on its floor and CSP bought it.
Once the VMC arrived at CSP, the first order of business was to automate it. "My brother and I took automation classes in high school before getting our engineering degrees," Arnot explained, "so we knew about automation and how automation should work. We called the robot manufacturer and told them that we wanted to buy a robot, and they told us to go through an approved integrator. We told him we did not want to go through an integrator, we wanted to install the robot ourselves. The robot manufacturer asked how we knew about the robots. We told them we had used the robots in high school. Once they heard that, they said we could buy a robot from them. We picked up our first robot with my Dad's Suburban. We did the integration ourselves, with some software help from Doosan's team in New Jersey."
The next thing they did was design and build a part loading system, so the robot could pick up a new part from the loading station, take it to the Doosan VMC, pick up the finished part from the VMC and load the new part into the VMC and then drop the finished part into a parts bin.
"When we ran that job manually, we would get 500 pieces a day. Then with the previous machine aided by a Bardons and Oliver lathe doing the finish tapping, and we would produce about 1,200 pieces per day. When we changed to the Doosan VMC integrated with a robot and the new loading system, we could produce about 1,800 pieces per day. Lately, we have had someone come in at night and load the machine up, and now we are producing 2,600 pieces per day. This is a five-fold increase in throughput," said Arnot. "We run roughly half a million cycles a year on our Doosan vertical machining center. And the beautiful thing about the MV 5025/50 is that it is constantly running."
