Laser Tracker Probing System
March 1, 2014

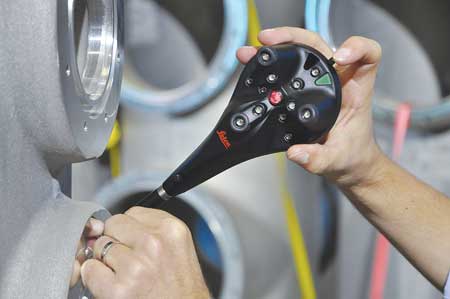

Hexagon Metrology offers the Leica B-Probe, an entry-level wireless probing device that extends the capability of the Leica Absolute Tracker AT402. The handheld Leica B-Probe is designed for the inspection, alignment and assembly of large-scale fabrications such as railway coaches, construction and off-highway vehicles or agricultural machinery.
"The Leica B-Probe works within a 32.8 ft (10 m) radial distance from the AT402 with an accuracy of ±.008 in. (0.2 mm) over a full measurement range, offering greater capabilities and flexibility over similar systems that have fixed-base stations," said a company spokesperson. "The lightweight 6.7 oz (190 g) B-Probe features IP50 certification and is AAA battery-powered, an ideal complement to the ultra-compact, user-friendly system design of the AT402. By using the move station method, the working range of the system can easily be multiplied with almost no loss in probing accuracy. For even larger parts or measurements that require higher accuracies, a standard retroreflector can also be used in combination with the B-Probe to take full advantage of the AT402's accuracy and 525 ft (160 m) radial measuring range."
"The B-Probe fills a niche between reflector-based measurements and our high-performance 6DoF (6° of freedom) offering based on the Leica T-Probe and the Absolute Tracker AT901," said Duncan Redgewell, General Manager of Hexagon Metrology's Laser Tracker Product Line. "We recognized that many industries manufacturing large-scale assemblies required range, portability and inspection of hidden features, but had only modest accuracy requirements. The B-Probe was designed specifically for these users.
"Adding the B-Probe accessory is as simple as adding a reflector to a laser tracker, and any AT402 laser tracker already in use can be upgraded with a B-Probe by the user."
For more information contact:
Cathy Hayat
Marketing Specialist
Hexagon Metrology, Inc.
1558 Todd Farm Drive
Elgin, IL 60123
Direct: 847-214-5263
Main: 847-931-0100 Ext. 5263
cathy.hayat@hexagonmetrology.com
www.hexagonmetrology.us
www.hexmet.us/bprobe
