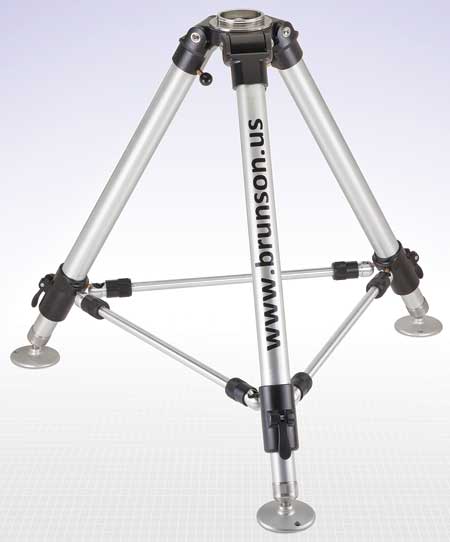

TetraLock Portable Industrial Stands
March 1, 2014
Brunson Instrument Company offers its Brunson TetraLock lightweight industrial metrology stands featuring a pre-stressed tetrahedron design for stability. The Brunson TetraLock and TetraLock Lite Stands are made from aluminum and stainless steel, and include a choice of thread mount, pad feet and a duffel style carrying bag. These portable stands can be checked as luggage or stowed in the trunk, and used on tables or platforms.
TetraLock industrial stands may be utilized for portable coordinate measuring machines (PCMMs) and survey instrumentation weighing up to 125 lbs., such as articulating arms, projectors, scanners, theodolites, total stations and more. The TetraLock stand weighs just over 20 lbs. with a maximum height of 47" and maximum footprint of 50". The TetraLock Lite stand is an economical option for customers who do not require the rigidity of the TetraLock stand, but require ease of use and portability. This featherweight stand weighs in at 16.2 lbs. with a maximum height of 47".
TetraLock stands are designed for easy transport on the plant floor with a simple, fast set-up. Cross braces rotate down and snap into place, forcing the stand's legs to open and lock against a positive stop. The legs are then secured with knurled, collet-type clamps. The TetraLock Lite stand deploys even faster by tightening a locking plate under its mounting ring. Each stand is collapsible for storage, yet has no movement within its joints when locked in the open position. To reach the desired height, a technician uses quick-action cam levers to lock or release the stand's telescoping legs with handy index marks to guide the process. Optional accessories such as the Brunson EasyConnect, wheels and pointed feet are also available.
For more information contact:
Brunson Instrument Company
8000 E. 23rd St.
Kansas City, MO 64129
800-445-9405
sales@brunson.us
www.brunson.us
