The firearms industry is currently a robust sector of the U.S. industrial economy. To assist manufacturers of small arms with growing volumes of barrels, Precihole Machine Tools has introduced a dedicated manufacturing cell to improve the efficiency of producing barrels. This cell consists of equipment to perform all necessary operations on the I.D. to convert a bar of metal to a barrel, e.g. gundrilling to get the basic hole, pull reaming to improve the concentricity and finish of the hole, and button rifling to carve the grooves needed on the barrel.
Depending on the needs of the operation, the Precihole barrel manufacturing cell can be configured to be scalable to handle manufacturing 2,500 barrels to 15,000 barrels a month on a two-shift basis. According to the company, a single dedicated cell requires minimum operator input, guarantees performance and maintains high quality output.

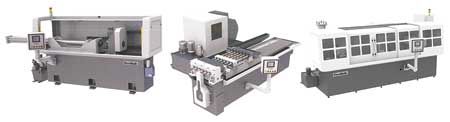

Each machine in the cell performs a specific function. The first operation is gundrilling, which produces a concentric hole to the barrel centerline for all small arms calibers such as 0.223, 0.308 and 0.45. Length of drilling can be up to 40". The Precihole gundrilling machine model GVN 12C/4-100 has four high-precision spindles powered by high torque spindle motors. Part counter rotation improves the drilling axis, resulting in extremely straight holes, according to the company. The tool RPM and feedrate are controlled by a Siemens PLC system that has sufficient memory to store up to 100 programs. The coolant system is re-circulating and incorporates a magnetic separator, chip conveyor, bag type 25-micron filtration unit and an oil chiller that maintains the oil at room temperature.
After gundrilling, the barrels are pull-reamed on a four spindle pull reaming machine. The pull reaming operation generates a straight axis and improves surface finish. The shank is passed through the barrel. Then the reaming tool is attached and is pulled through the barrel. By "pulling" rather than "pushing" the tool, concentricity of the barrel is high. The coolant system is the same as the gundrilling machine and provides chip separation and chilled coolant.
The last operation in the cell is performed on a single spindle button rifling machine. The barrel is loaded into a chuck and a carbide button is pulled through the barrel while the barrel is rotating precisely at the certain RPM by a servo motor. Rifling twist ratios are adjustable from 1-5 to 1-60. According to the company, this is a very quick operation compared to the drilling and reaming operations.
Precihole machine tools are distributed by Absolute Machine Tools Inc.
