ABB Jokab Safety has released a 1,200 unit line of key interlock switches and non-contact switches.

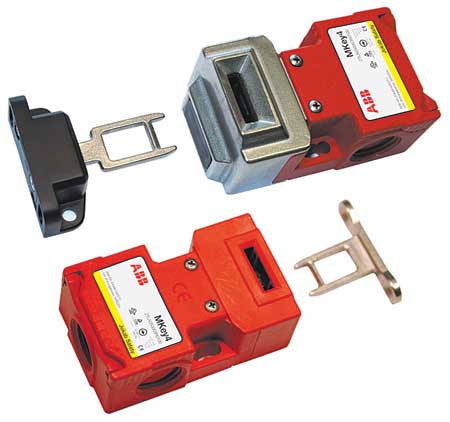

The MKey interlock switches provide position interlock detection for moving guards and are designed to fit the leading edge of sliding, hinged or lift-off machine guards. They are available in two holding strength versions, 12N and 40N, and have several actuator types for differing applications. The Sense Coded non-contact switches, designed to interlock hinged, sliding and removable guards doors, are especially designed to operate in environments that require high levels of safety. They are compact, making them easy to position and hide on gates and hatches.
MKey switches are also available with a locking function for moving guards, allowing the switch to be locked in the protective position, preventing unwanted access to machinery until dangerous operations have ceased. The locking function is useful for processes that cannot be interrupted such as welding applications, and machinery with extended stopping periods like paper machinery, and for preventing unauthorized access to a particular area.
MKey switches come in three different material compositions to match the environment in which they will be used. The basic version comes in a full plastic body (polyester), with a plastic body / stainless steel head variation also available. Both versions with the plastic body carry an IP67 enclosure protection rating. A stainless steel 316 body is available for harsh applications, carry an IP69K enclosure protection rating and are maintained by a double seal lid gasket. This version can be high pressure hosed with detergent at high water temperatures. According to the company, the MKey switches are suited for a range of machine safety applications including food, chemical, welding, paper converting, robotics and press equipment.

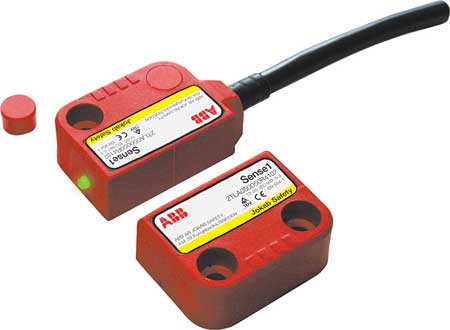

Sense Switches are resistant to both dirt and water and have no dust collecting cavities, making them useful in environments where hygiene is needed. The magnetic switches have a long working life since no mechanical contact is necessary for operation. The sensing distance of Sense Switches is up to 14 mm and has a high tolerance to misalignment.
Sense Switches are available in UL approved polyester and stainless steel 316. The stainless steel has a mirror polished finished (Ra 4) suitable for CIP cleaning - food splash zones according to EHEDG guidelines. "Non-contact switches can endure very harsh environments, including extreme cold and heat, and the high-pressure wash down often found in food processing and other sanitary applications," said a company spokesperson. "Machine safety applications for which the non-contact switches are suited include food/beverage, packaging, semi-conductor and environmentally sensitive applications."
For more information contact:
ABB Jokab Safety
6471 Commerce Drive
Westland, MI 48185
888-282-2123
www.jokabsafetyna.com
