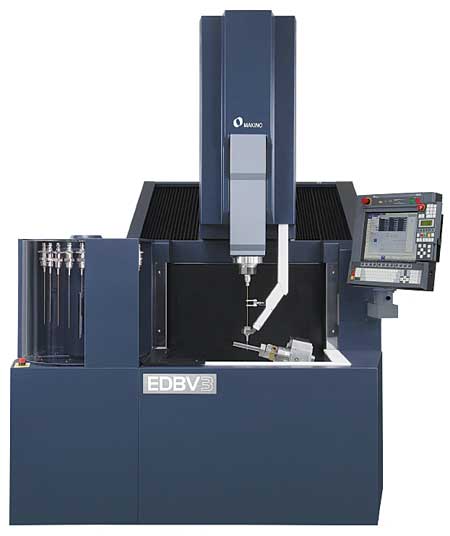

For discharge machining of cooling air holes and shaped diffuser holes in blade and vane segments, Makino offers the EDBV3 Fast Hole Drill EDM. According to Makino, the EDBV3 can produce a range of hole shapes and sizes within a single setup, reducing required tool variety and overall cycle times.
"The need for EDM drilling with advanced capabilities in blade and vane components has grown substantially due to new engine production requirements, as aerospace manufacturers strive to improve engine performance and reduce fuel consumption," said Brian Pfluger, Makino's EDM Product Line Manager. "The EDBV3 fulfills these needs by building on Makino's EDM platforms with onboard filtration and resin systems and a user-friendly control system featuring preprogrammed hole profiles. Its 2-axis rotary table combined with automatic tool and guide change systems enable manufacturers to machine complex features fully unattended without risk to loss of part quality or accuracy."
The EDBV3 offers X-, Y- and Z-axis travels of 370 mm, 270 mm and 500 mm (14.5", 10.6" and 19.6") and worktable dimensions of 250 mm x 270 mm, with a maximum workpiece weight load of 5 kg (optional 15 kg payload available). Its rotary C-axis head features an EROWA compact chuck that enables automatic changing of electrode diameters down to 0.2 mm (0.008") and can spin up to 1,000 RPM.
"All EDM drilling on the EDBV3 is performed fully submerged under water for higher part quality, improved stability and up to 10 times faster processing speeds," said a company spokesperson. "The EDBV3 uses a single-electrode processing approach, which avoids the high cost of custom multi-electrode holders and standardizes the tool holders with a more flexible and cost-efficient system."
For unattended burning of varying cooling hole diameters, the EDBV3 features automatic tool change (ATC) and automatic guide change (AGC) systems. A patented electrode set that combines the electrode holder and die guide together into a common assembly provides automated exchanges. According to Makino, these features enable 30 second ATC and AGC exchanges.
The EDBV3 uses a guide arm assembly to hold, locate and support the die guide, which can be alternately used as a programmable axis (W-axis). An integrated middle guide system can be applied for small diameter electrodes, preventing whipping, bending and vibration. Additionally, the middle guide fingers automatically retract as the electrode tube reduces in size, using as much of the electrode length as possible.
The standard configuration of the EDBV3 includes a 24 station tool carousel system and 24 holder assemblies to fully tool up the machine. The tool carousel can be exchanged as a palletized magazine for extended hours of automated operation.
Makino's Model Plan system is integrated into the controller, providing user-friendly input screens with direct G- and M-code programming formats. An electrode length management system provides electrode wear tracking and automatically exchanges electrodes when lengths become too short.
To prevent back-wall impingement during blade and vane cavity wall penetration, the EDBV3 includes a sensitive breakthrough detection circuit. This sensing capability uses a combination of adaptive process monitoring techniques. According to Makino, the machine's fully submerged processing offers additional support by allowing debris flushing during breakthrough for a faster and more stable process.
