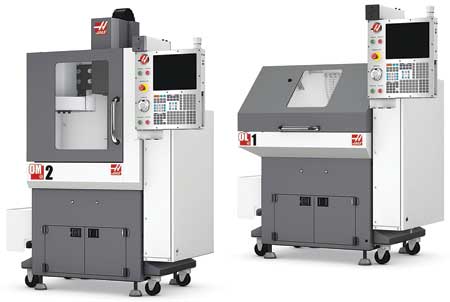

Haas Automation's CNC Office Machines are designed for high-volume production and prototyping of small, high-precision 2D and 3D parts.
For milling, Haas offers two sizes of Office Mill: The OM-1A features 8" x 8" x 12" travels and the OM-2A features 12" x 10" x 12" travels. Both machines have a 20" x 10" T-slot table, a 30,000 RPM ISO 20 taper spindle and a 20 pocket ATC. Maximum cutting feeds are 500 IPM with rapids to 757 IPM for reduced cycle times. Standard equipment includes a 15" color LCD monitor, 1 MB of program memory, USB port, coolant system, automatic lubrication and high-speed machining software with full look-ahead. A number of high-productivity options are also available.
For full 4th and/or 5th axis operation, Haas offers a pair of compact rotary tables that fit into the work envelope of the Office Mills. The HRT110 is a single-axis rotary table and the TR110 is a dual-axis trunnion table. Both units index at up to 300° per second and provide 65 ft-lbs of spindle torque for simultaneous 4- or 5-axis machining. They each feature a 110 mm (4.33") platter that accepts a variety of workholding and fixturing options.
For turning, Haas offers the compact OL-1 Office Lathe. It features a 7.5 HP (peak) spindle that spins to 6,000 RPM. The 5C threaded spindle accepts a number of optional chucks and is equipped with a pneumatic collet closer. The machine's high-speed cross slide features travels of 12" x 8" (XZ) and accepts a variety of gang-style tooling.
The Haas Office Machines are small enough to fit through a 36" doorway and can be moved with a pallet jack or equipment dolly. The Office Machines fit into most freight elevators, and with the optional caster kit they can be rolled from one location to another. The machines run on single-phase power.
