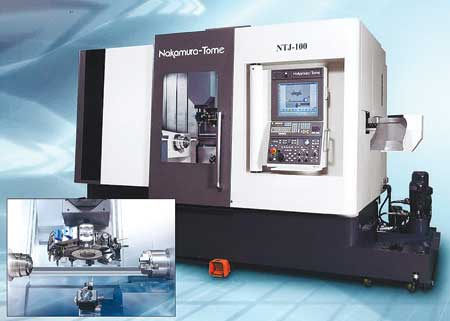

Methods Machine Tools has introduced the Nakamura-Tome NTJ-100 multitasking turn/mill center designed for applications ranging from low to high volume lots of medical, aerospace, general job shop components and more.
The Nakamura NTJ-100 multitasking center offers tool capacity of up to 54 tool stations for turning and 24 tool stations for milling tools. For faster cycle times, the NTJ-100 has two high rigidity turrets, each with a Y-axis - 3.5" (80 mm) on the upper and 2.6"(65 mm) on the lower - facilitating pinch turn and pinch mill operations. An upper turret swiveling B-axis with a range of 182° is designed for producing angular features without the need for angle milling heads.
"Two milling tool motors, each at 9.5/3 HP, can double the performance compared to traditional multitasking centers," said a company spokesperson. "Twin 6,000min-1 spindles offer faster motor acceleration and deceleration to improve machining efficiency." Synchronization of the left and right C-axes is offered for parts simultaneously clamped by the left and right side chucks. The NTJ-100 has a maximum turning diameter of 6.9" (175 mm), a maximum turning length of 26.7" (678 mm) and a standard 1.6" (42 mm) / maximum 2.6" (65 mm) bar capacity.
The NTJ-100 provides X-axis and Z-axis speeds of 787 IPM and 1,574 IPM. Designed with a minimum 7.9" (200 mm) and maximum 35.8" (910 mm) distance between spindles to eliminate interference of tooling during multitasking, the NTJ-100 allows for multiple tools in the cut simultaneously.
The machine weighs 22,046 lbs (10,000 kg) and has a footprint of 149.6" (3,799 mm) length x 78.7" (2,100 mm) width.
The NTJ-100 features a 19" high-resolution touch screen LCD panel. The Nakamura-Tome Intelligent Programming System (NT-IPS) is a PC-based control that is built into the machine. It works in conjunction with the latest FANUC 31iB-2 controller for improved functionality and processing speeds. New standard functions include a spindle speed override switch, a program number search, C-axis synchronization and helical interpolation.
CAMplete TruePath Turn/Mill software is standard on Nakamura-Tome multitasking turning centers. CAMplete Turn/Mill software is an integrated suite of G-code editing, optimization, analysis and verification tools, enabling a full range of turn/ mill functions. Methods recently introduced Version 6.0 of this software, which includes several upgrades for greater macro language support, improved error handling, increased post processing capabilities and more.
