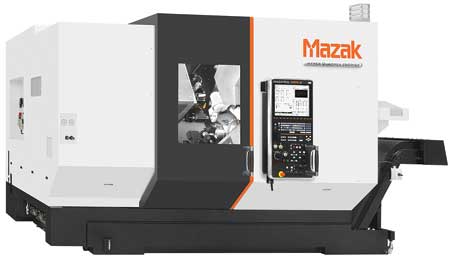

The twin-spindle and twin-turret configuration of the HYPER QUADREX 250MSY Multi-Tasking Turning Center is designed to provide more part processing opportunities, including enhanced done-in-one capabilities where it can complete machining from slug material in a single setup. Additionally, the balanced cutting of the upper and lower turrets provide improved part throughput and the manufacture of a range of workpieces, according to Mazak.
The machine's twin opposed turning spindles can operate together or separately, allowing a single part to be machined on all surfaces through a coordinated hand-off between spindles, or two different parts can be machined simultaneously on one machine. The spindles are supported by large diameter bearings for high spindle rigidity. The 4,000 RPM, 35 HP main spindle features a 10" chuck and 3.58" spindle bore for handling bar stock up to 3.2" diameter, while the second spindle has an 8" chuck, 2.55" spindle bore and a 30 HP integral spindle motor that offers a 5,000 RPM top speed. Both have full C-axis CNC control for part positioning and contouring with indexing increments of 0.0001í.
Because the twin turrets operate independently or together on the same workpiece, the HYPER QUADREX 250MSY can simultaneously machine two different features on a workpiece or follow a balanced machining strategy where two tools work together on the same workpiece feature. In cases where the part configuration permits, Mazak reported that balanced machining could remove up to 25% of the cycle time.
The HYPER QUADREX 250MSY features the MATRIX 2 CNC control. "Within the control are both enhanced hardware and software functionalities that make the control easy to use while also delivering high accuracy and increased productivity," said a company spokesperson. "Control hardware performance is much faster with higher processing speeds for small increment operation that provides shorter cycle times as well as improved surface finishes."
For continuous unmanned operations, the HYPER QUADREX 250MSY can integrate with an optional bar feeder and robot loader. "All Mazak CNC controls are MTConnect compliant and, together, allow Mazak customers to simplify the monitoring and management of their production systems as well as improve machine tool utilization and throughput," said the spokesperson.
As part of Mazak's Five Levels of Multi-Tasking, the HYPER QUADREX 250MSY is a Level 2 machine - those machines with Y-axis off-center machining.
