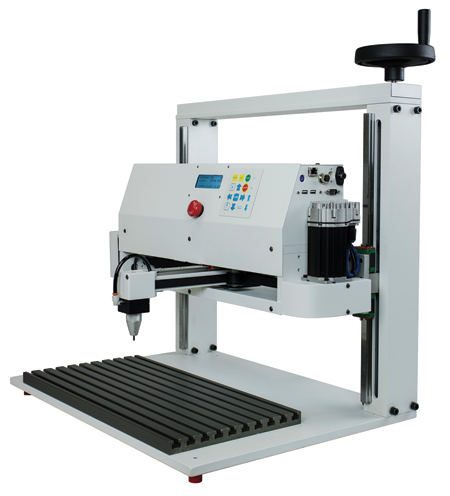

Dot Peen Marker



Kwik Mark Inc. has introduced its new line of X Series markers that are designed to improve overall operation and streamline every aspect of product marking.

The smarter design features high performance for demanding applications. The cantilevered marking head provides a clear open line of sight while the marking head can retract back to clear other tooling and equipment. Up to 6 axes are motion control ready and no PC or control box is required. For custom integration with logic, additional I/O is available.

This dot peen marker - manufactured in the U.S. - features machine tool quality construction with twin rigid upright column lead screw and ball slide design, brushless servomotors and non-contact limit home sensors and large t-slot table for fixturing. It is also available with programmable Z-axis (full column height).

A true file based solution with patented iTeach function allows use of the marking tip as a "pointer" to define the text path. Teach the starting point of a line (1 point), the angle to use for angular text (2 points), and the radius for arc text (3 points), without prints, measuring tools or even the skillset to do layout work. The latest embedded controls feature CF card memory with preprogrammed functions, job selection or data input and barcode input ready.

For more information contact:

Kwik Mark Inc.

4071 Albany St

McHenry, IL 60050

815-363-8268

info@kwikmark.com

www.kwikmark.com
