High Capacity Shelf Magazine

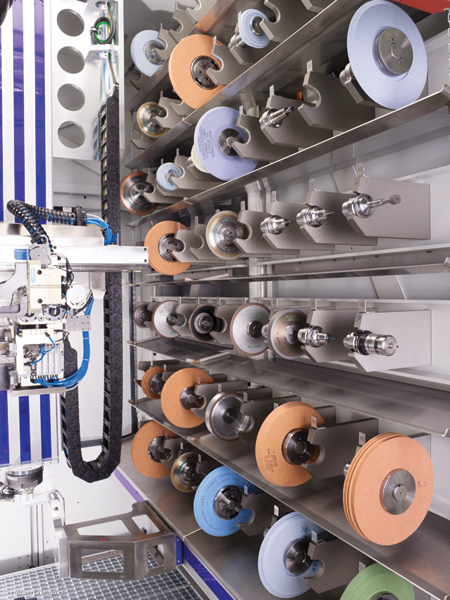

The new Haas tool magazine has space for up to 70 grinding wheels. Photo: Herbert Naujoks

Haas Multigrind now offers a high-capacity shelf magazine.

On the Multigrind CB grinding machine, the Haas shelf magazine (2,000 x 2,400 x 3,200 mm, L x W x H) offers space for 65 grinding wheels of up to 300 mm diameter. On the Multigrind CA grinding machine, the shelf magazine can be equipped with up to 70 grinding wheels of up to 250 mm diameter. The magazine can also hold up to 20 coolant nozzles.

The high capacity magazine enables customers to add more operations on a single part and to reduce changeover time between different parts by loading wheels and tools for multiple part numbers in the magazine.

The Haas Horizon programming system maintains locations, dimensions and life information of all wheels and tools in the magazine in addition to programming the machine's grinding and automation functions.

"Even with much more wheel capacity, tool change time on the new shelf magazine is only 10 seconds," said Dirk Wember, Haas Multigrind's President. "We are not aware of any other tool magazine that offers as much space and flexibility."

Haas Multigrind LLC is the U.S. subsidiary of HAAS Schleifmaschinen GmbH, headquartered in Trossingen, Germany. The company produces three models of machines: The Multigrind CA, CB and CU systems. Haas grinding machines are used to manufacture rotary and profile tools, gear cutting and cold forming tools, turbine engine components, medical instruments and implants and much more.

For more information contact:

Haas Multigrind LLC

137 Enterprise Drive

Warsaw, IN 46580

574-268-0053

info@multigrind.com

www.multigrind.com
