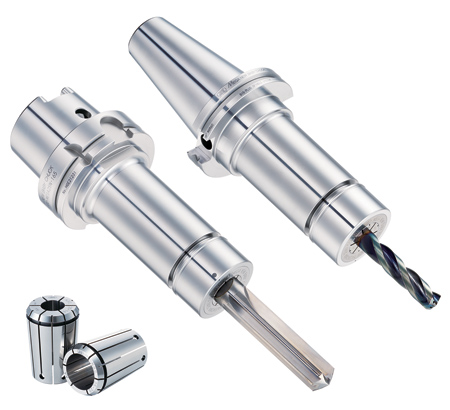

Mega New Baby Chuck 25N



BIG KAISER's Mega New Baby Chuck is available up to o1" clamping for drills, reamers and finishing end mills with .00004" runout accuracy. The Mega New Baby Chuck is a high precision and multi-purpose collet chuck system designed for high-speed cutting and provides a 1 micron runout at the collet nose.

The Mega New Baby is suitable for cutting tools with a diameter up to o25.4 mm and its high-speed design is offered in six different collet series sizes. "These precise and versatile collet chucks are well accepted and recognized for their accuracy in high-speed applications," said a company spokesperson.

Ideal length and diameter of the holder is the key to precision machining. If selection is limited, an increased tool extension reduces performance. BIG KAISER has 353 different versions available as standard, making it easier to select the ideal one.

has a clamping range of o.610"-1.000". The thrust ball bearings eliminate distortion of the collet during tightening and the patented design prevents the ball bearings from moving at high speed.

Additional features include:

  • Available in BIG-PLUS (SK/BT), HSK and BIG Capto
  • Two-way coolant supply: Through tools or jet if tools do not have any holes
  • High runout precision of 0.003 mm at 4xD
  • Every chuck is 100% inspected twice.

The collet is inspected twice to provide accuracy. The material, production, heat treatment and every other part is selected for precision.

For more information contact:

BIG KAISER Precision Tooling Inc.

2600 Huntington Blvd.

Hoffman Estates, IL 60192

888-TOOL-PRO / 224-770-2999

bigkaiser@us.bigkaiser.com

www.us.bigkaiser.com
