Modular Heads for TungMeister Series

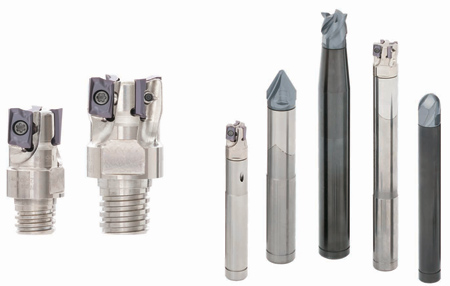

Tungaloy Corporation has expanded its TungMeister changeable-head end mill system with a new line of modular heads for TungForce-Rec - an indexable miniature shoulder milling cutter series.

TungForce-Rec features an innovative V-shaped insert, designed to avoid insert movement under high centrifugal force, while delivering machining reliability even when used at a high metal removal rate. The insert's large rake angle provides light cutting action, while the obtuse angled flank face of the insert strengthens the cutting edge and avoids chipping. "The cutter body design allows for more compact and sturdy pockets than other cutters with flat bottom inserts. Therefore, a larger core diameter is retained in the given small tool diameter, making TungForce-Rec an ideal miniature shoulder mill with enhanced rigidity for shouldering, slotting, 3-D profiling and various other applications," said a company spokesperson.

TungForce-Rec inserts feature a maximum 6 mm (0.24") depth of cut and are available in three different grades (AH3135, AH120 and KS05F) for a wide range of materials. Tool diameters are available from o8 mm (0.32") to o16 mm (0.63").

"Characterized by a rigid body structure and unique insert design, TungForce-Rec provides reliable, high precision miniature shoulder milling in a wide range of materials," said a company spokesperson. The TungMeister changeable-head system has a lineup of TungForce-Rec modules. The indexable end mill system features secure coupling with minimal bending at the flange and tapered shank contacts. An optimal tool shank selection is possible from the standard shank material lineup of cemented carbide, steel and vibration damping pure tungsten.

For more information contact:

Tungaloy America, Inc.

3726 N. Ventura Dr

Arlington Heights, IL 60004

888-554-8394

info@tungaloyamerica.com

www.tungaloyamerica.com
