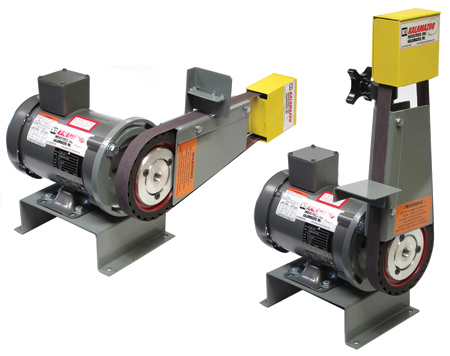

Multi-Positional Belt Grinder

Kalamazoo Industries model BG142 belt grinder was first designed as a custom grinder to meet a specific customer need, and now has been added to the company's growing line of standard grinders. The grinder offers multi-position contact from vertical to horizontal and full work movement from left to right. The grinder was designed for aggressive grinding and beveling with the platen in place. Remove the platen and the narrow belt allows slack belt grinding and finishing of tight inside radii parts.

The BG142 grinder features a 1" x 42" grinding belt with 6" x 2" serrated 70 duro contact wheel, and a removable platen and 1-3/4" W x 4" H worktable. The machine is supplied with a 1/2 HP 1Ph 110V TEFC motor delivering 5,400 SFPM surface speed.

For more information contact:

Kalamazoo Industries, Inc.

6856 East K Ave.

Kalamazoo, MI 49048

800-592-2050 / 269-382-2050

info@kalamazooind.com

www.kalamazooind.com
