Enhanced Grinding Wheel Balancing System

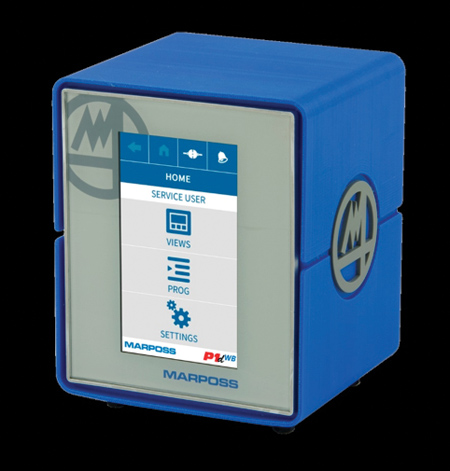

The Marposs P1dWB enhanced grinding wheel and process monitoring system intended to replace the Marposs E78 and E82 amplifiers.

Marposs has announced the availability of its P1dWB, an entry level grinding wheel balancing and process monitoring system. This new system is intended to replace Marposs' electronic systems E78 and E82. Designed with full backwards capability, the P1dWB features new functions such as pre-balancing and spectral analysis of the imbalance. The system can also manage a single balancing head and simultaneously an integrated acoustic sensor (if present) both for flange (FT) and spindle (ST) models.

The P1dWB balancing system helps control the intensity of vibrations on the grinding wheel to automatically compensate for imbalance, helping to improve the quality of the parts being ground, specifically their surface finish and geometry. Machining cycle times can also be optimized.

The system is available in three versions - rack, stand-alone and remote panel - so that it can be installed outside of the machine tool or integrated in the operator panel. It has a user-friendly 4.3" touchscreen and comes with a tool for data backup, restore operations as well as the ability to act as the HMI if the system is used with a personal computer rather than a panel. Other features available on the P1dWB include a multi-level log-in function for secure management of data and settings, and a self-diagnostic function that quickens troubleshooting.

"The Marposs P1dWB is a state-of-the-art device designed to upgrade old-generation, in-process and pre/post-process amplifiers. Replacing the existing Marposs E78 or E82 will enable the user to meet international environmental and safety standards, as well as reducing maintenance costs due to the new warranty coverage. The P1dWB is ready to install on a grinding machine, with no need to modify the control logic; it is supplied with a dedicated accessories kit that ensures the plug & play replacement procedure is simple and quick," said a company spokesperson.

For more information contact:

Marposs Corporation

3300 Cross Creek Parkway

Auburn Hills, MI 48326

248-370-0404

marposs@us.marposs.com

www.marposs.com
