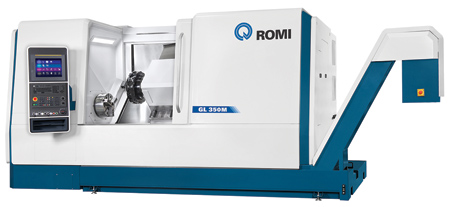

GL Series Horizontal Turning Center



Romi offers the New Generation GL Series 2-axis horizontal turning centers.

The machines are available in four models with maximum cutting diameters ranging from 11" (282 mm) to 19.3" (490 mm) and Z-travel ranging from 23.6" (600 mm) to 47.2" (1,200 mm).

"Designed for medium to high production environments, the GL Series features high power, torque and feed force, in addition to Romi's trademark rigidity and precision attributed to the robust Romi-made monoblock base," said a company spokesperson.

Models include the GL250, GL300, GL350 and GL450. Each is constructed with durable roller ways on all axes to produce high rigidity. A built-in spindle motor with a chiller incorporated and direct drive servo motors are designed to provide high response speed, accuracy, less vibration and lower maintenance requirements. Chilling the motor increases life expectancy and produces less thermal expansion.

The GL Series comes standard with active thermal compensation to maintain consistent accuracy even as the machine temperature increases over the course of extended use. The tailstock is programmable and servo-driven. Position, speed and force are determined directly via the FANUC controller that reduces set-up time.

Each model comes with a 12-station turret with a choice of fixed tools with a Romi disk, driven tools with a VDI or BMT disk, driven tools with Y-axis or dual spindle with driven tools and Y-axis.

The CNC control features a FANUC Oi-TF with 15" LCD touchscreen and FANUC 32iB with 19" LCD touchscreen for dual spindle version machines and is the newest generation of FANUC's Series iHMI. It is designed to produce faster, more accurate performance for turning applications with separate areas on the main screen for planning, machining, improvements and utilities. Functions are accessible with just two clicks. It comes standard with an ethernet interface, as well as a compact flash card and USB ports.

Romi's GL Series turning centers are all produced in Romi's state-of-the-art facilities that maintain various safety and quality certifications including ISO 9001, ISO 14001, IATF 16949 and CE.

For more information contact:

Romi Machine Tools, Ltd.

1845 Airport Exchange Blvd.

Erlanger, KY 41018

877-ROMIUSA

sales@romiusa.com

www.romiusa.com
