Enhancements to NXT Tool Grinder

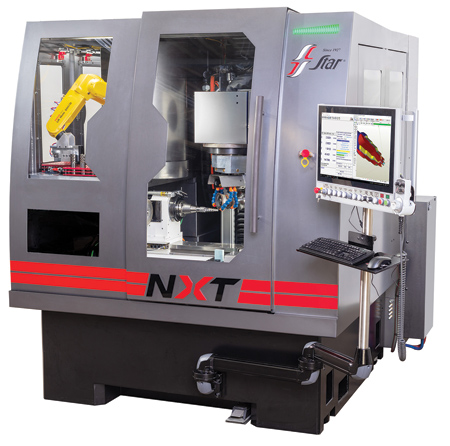

Star Cutter Company has announced enhancements to its Star NXT 5-axis Tool Grinder, a versatile 5-axis CNC machine with a small footprint and a large grind zone. Designed in a modular fashion that offers quick adaptation to application requirements, the NXT's mechanical, software and automation features and functions have been updated.

Mechanical improvements to the NXT design provide higher system rigidity and improved contamination containment, as well as wash down bed and coolant boost pump upgrade options. The machine's control software now features the latest Flexium Tools with NUMROTO 4.2.0, as well as an innovative solution for freeform grinding using ESPRIT CAD/CAM capability with 3D simulation and special capability for medical components.

The updated automation package accommodates denser pallet arrays for improved lot sizes and runtime, while delivering smoother robot operation and better repeatability. Additionally, the system can now adapt to multiple part profiles to be produced within a single run. An optional laser marking system has also been integrated for automated tool marking, in addition to other new features.

Standard and custom options for process enhancement are available, including a new clearance-optimized flip-up and air-actuated tailstock and new workholding solutions. Real-time tracking of temperatures, spindle hours and bearing travel distances have been added for improved preventative maintenance functionality.

The NXT 5-axis tool grinder has a 6.5' W by 7.5' L footprint with a 30.2" x 19.9" x 25.6" (LWH) grinding zone and ability to run tools up to 10" (250 mm) in diameter. It has an optional 28 kW synchronous spindle capable of 20,000 RPM and FANUC robot automation with 0.196" to 1.250" (5 mm to 32 mm) gripper assembly, as well as NUMROTO grinding software. Backed by application support, the Star Cutter NXT grinders are designed, manufactured and serviced in the United States.

For more information contact:

Star Cutter Company

23461 Industrial Park Drive

Farmington Hills, MI 48335
