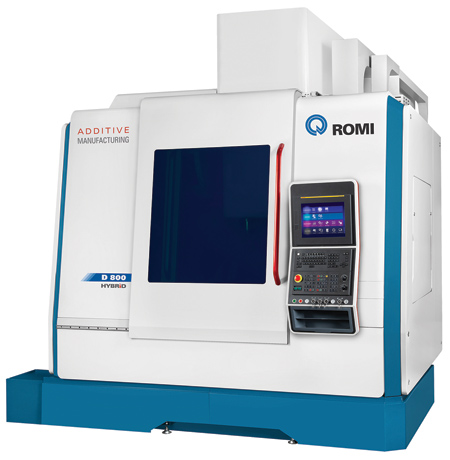

Romi has introduced a complete line of hybrid manufacturing machine tools that combine traditional machining operations with 3D metallic additive manufacturing (AM). Romi's New Generation D Series vertical machining centers (VMCs) are the basis for this family of hybrids and include the D 800, the D 1000 and the D 1250.
The three models have a robust and heavy casting, roller guides on all axes, BIG PLUS direct-drive spindle and a maximum machining volume of 31" x 24" x 25", 40" x 24" x 25" and 50" x 24" x 25", respectively. Also available as a hybrid is the Romi DCM 620-5X 5-axis VMC.

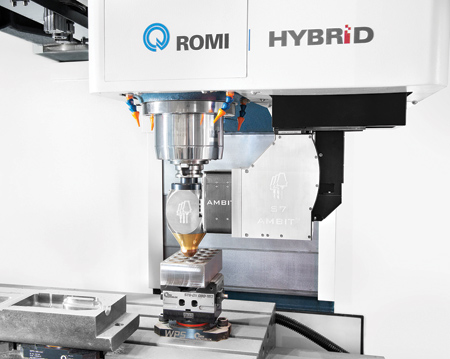

Romi has made switching back and forth from subtractive machining to AM as simple as making a tool change. The additive head is brought into position via an automatic toolchanger, and the laser deposition/additive process on the workpiece can begin. Material can then be added to the piece in the exact profile, amount and location desired. It is suitable for part repair, adding features or intricate work where subtractive manufacturing would take more time and produce more waste material.
Romi teamed with Hybrid Manufacturing Technologies, led by Dr. Jason Jones, to make the D Series Hybrids a reality. Hybrid Manufacturing Technologies makes over 10 AMBIT FLEX processing heads for the hybrid D series machines. This enables high operational flexibility for a variety of applications including machining with AM (metal, polymer or composites) and inspection (surface and subsurface).
According to Rafael Boldorini, General Manager at Romi USA, "While we did not invent AM, we have made it more accessible for smaller shops with our standard line of hybrid CNCs. Previously, customers had to spend well over $1,000,000.00 to take advantage of these capabilities. By building our D Series specifically for hybrid manufacturing, we can offer an entry level machine starting at a much more affordable price point. That has opened the door for a lot of shops to take advantage of this powerful technology."
The D series solutions are equipped with thermal compensation monitored with sensors to improve precision. Each model is equipped with a FANUC 0i-MF i-HMI CNC with 15" touchscreen, and a High Speed and High Quality package that allows better performance during machining.
For more information contact:
Romi Machine Tools, Ltd.
1845 Airport Exchange Blvd.
Erlanger, KY 41018
877-ROMIUSA
sales@romiusa.com
www.romiusa.com
